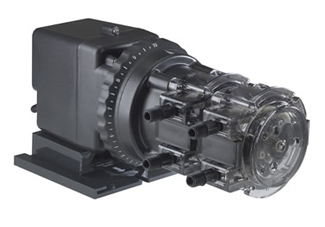

Double Head Adjustable Output Metering Pump
- Classic Series From Stenner
Double Head Adjustable Output Metering Pump - Classic Series From Stenner
Similar to the other models in the Classic series, the pump will dose solutions such as sodium hypochlorite, acid, polyphosphates, biocides for common water treatment applications that include disinfection, pH control, corrosion and scale control, oxidation and sanitization. This pump series provides twice the output for large Commercial Pool and Aquatic Facilities or Water and Wastewater treatment plants. The pump can also inject two compatible solutions at the same ratio. The Classic Series double head adjustable pump is built the same way as the single head adjustable with the addition of another pump head that doubles the output. How the Double Head Adjustable Chemical Injection Pump Works The output is determined by three factors; the rpm of the motor gears, the setting on the feed rate control and the pump tubes in both heads. The feed rate control has an external dial ring that is labeled L to 10 offering an adjustable output of 5% to 100% in 2.5% increments. Unique Stenner Features
Sub-series The 100 and 170 models are two sub-series within the Classic Series Double Head Pumps (Adjustable and Fixed) and below is a summary of the primary differences in the Adjustable.

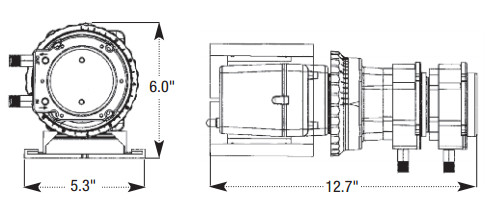

Listings vary by model. * Santoprene® is a registered trademark of Exxon Mobil Corporation. Pump Dimensions
Shipping Weight: 10 lbs (4.5 kg) Box Dimensions: 18 x 8 x 10 in. (45 x 20 x 25 cm)
|
The Double Head Adjustable Output Metering Pump is another variation to select from in the Classic Series, electro-mechanical pump line.
