pH And ORP Sensors WDS Series
From Walchem Corporation

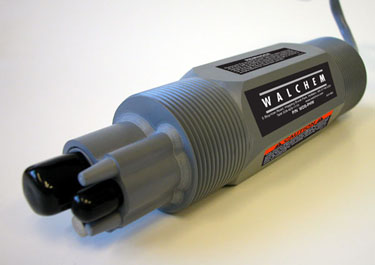

WDS Series pH And ORP Sensors

Walchem’s WDS Series differential pH and ORP sensors are designed for industrial applications to be long-lasting and reliable.

The differential measurement technique uses two electrodes, one for the process measurement and the other for the reference measurement. Each electrode is measured differentially with respect to a third metal electrode. The reference electrode is constructed from pH glass and is embedded in pH 7 buffer within the sensor behind a porous, replaceable salt bridge.

If the reference solution becomes contaminated, or the salt bridge becomes clogged, it is easily replaced. The glass electrode is not prone to chemical attack like a silver/silver chloride reference can be, adding to the reliability of the sensor.

• Replaceable salt bridge for long life

• Field proven differential design

• Transmits signal 3,000 feet (915 meters)

• Walchem preamplifier models are compatible with Walchem controllers

• Conventional preamplifier models are compatible with GLI and Aquametrix (Lisle Metrix) controllers

• Resistant to ground loop problem
