Stenner Tank Mixer

PERISTALTIC METERING PUMPS SINCE 1957

Stenner Tank Mixer

Select the Stenner Mixer for your Stenner Tank to help keep chemical in solution.

The Mixer is utilized in applications when injecting solutions that are difficult to keep in suspension. It will retro-fit existing Stenner tank systems or tanks and without any modifications. The mixing head is sealed to keep it from getting entangled with the suction line. The sealed design eliminates the need for a suction line guard. The mixer is intended for intermittent use and is available in 7.5, 15 and 30 gallon and 120V or 220V.

Unique Stenner Features

The patent pending design creates a rapid flow in a circular path. The speed and constant movement delivers high volume output for constant mixing to help keep the chemical in solution and prevent it from settling out around the outer edges of the solution tank.

Install the Mixer in three easy steps

1.Place the mixer in the solution tank opening.
2.Attach the safety screws.
3.Plug it in.

Select from three sizes in either 120V or 220V

Product Manual
Spec Sheet
Catalog
Chemical Resistance Guide

Technical Data

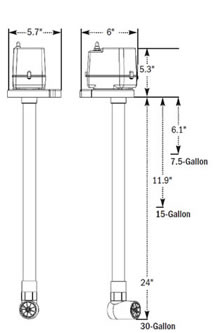

Pump Dimensions

7.5-Gallon Mixer

Shipping Weight: 6.6 lbs (3.0 kg)

Box Dimensions: 16 x 10 x 10 in. (40.6 x 25.4 x 25.4 cm)

15-Gallon Mixer

Shipping Weight: 7.4 lbs (3.4 kg)

Box Dimensions: 22 x 10 x 10 in. (55.9 x 25.4 x 25.4 cm)

30-Gallon Mixer

Shipping Weight: 9.4 lbs (4.3 kg)

Box Dimensions: 33 x 10 x 10 in. (83.8 x 25.4 x 25.4 cm)
