Tank Systems From Stenner

PERISTALTIC METERING PUMPS SINCE 1957



Stenner Tank System, shipped pre-assembled to save time and money on installations.

The Tank System consists of the tank and pump and is built with any of the following pumps Classic Single Head Adjustable, Classic Single Head Fixed, M128, Econ FP, Econ T, Econ Stennicator, Econ Integrator™, Econ VX and FX.

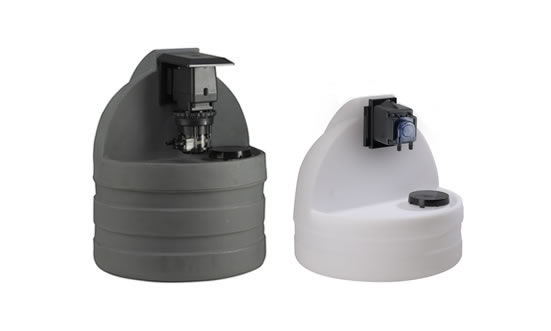

Select from three sizes and two colors.

7.5-gallon (28.4 liters)
15-gallon (56.8 liters)
30-gallon (113.6 liters) UV resistant gray
Translucent white

Tank System
Tank system with Classic Series
single head adjustable pump

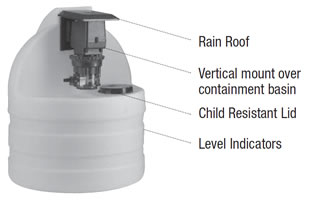

The polyethylene construction is both lightweight and rugged. The tank has incremental solution level indicators and is equipped with a child resistant lid. The pumps are vertically mounted over the tank's containment basin. A rain roof is included with Classic series models to help protect the motor in outdoor installations.Tanks are also sold separately.

The Stenner Mixer is designed to fit the tank system or tanks and is typically utilized when injecting solutions that are difficult to keep in suspension.

Installation Instructions
Spec Sheet

Materials of Construction

Tank - Polyethylene
Lid with child resistant lock - Polypropylene
Grommets - Viton
Screws - Stainless steel

Shipping Weight and Dimensions

Tank Size
Shipping Weight
Product Dimensions
Box Dimension
Classic Adjustable
or M128
Classic
Fixed
Econ
7.5-Gallon
24 lbs (10.9 kg)
23 lbs (6.8 kg)
19 lbs (8.6 kg)
20.5 OD x 19.6 in.
(52.1 OD x 49.8 cm)
23 x 23 x 20 in.
(58 x 58 x 50 cm)
15-Gallon
27 lbs (12.3 kg)
26 lbs (11.8 kg)
22 lbs (10. kg)
20.5 OD x 25.3 in.
(52.1 OD x 64.1 cm)
23 x 23 x 26 in.
(58 x 58 x 66 cm)
30-Gallon
34 lbs (15.4 kg)
32 lbs (14.5 kg)
28 lbs (12.7 kg)
20.5 OD x 37.5 in.
(52.1 OD x 95.3 cm)
23 x 23 x 38 in.
(58 x 58 x 96 cm)
