Resisitivity, Monitors, Controllers, 750 II, Series, Myron L, Company The unique circuitry of our 750 Series II Resistivity Monitor/controllers guarantees accurate and reliable measurements. Drift-free performance is assured by "field proven" electronics, including automatic DC offset compensation and highly accurate drive voltage.

Since Temperature Compensation is at the heart of accurate water measurement, all Myron L Monitor/controllers feature a highly refined and precise TC circuit. This feature perfectly matches the water temperature coefficient as it changes. All models are corrected to 25°C. The TC may be disabled to conform with USP requirements.

Built-in electronic calibration allows for fast quality checks.

A push-to-test button makes setpoint checks easy, while the internal alarm set discourages unauthorized adjustments.

Standard on all controller models is a heavy-duty, 10-amp output relay, operating on either increasing or decreasing readings. Bright green/red LEDs indicate readings above or below setpoint.

Digital and Analog 750 Series II models have an IP65/NEMA 4X water-resistant & corrosion-proof rated enclosure. At 152 x 122 mm/6 x 4.8 in., all models are suitable for panel, bench or surface mounting.

Additional options include a 3 Sensor Input Switch and/or a 3 Range Switch and a Remote Alarm™ model RA.

Resistivity Sensors

All 750 Series II Resistivity models require a CS10 series sensor. This reliable sensor features two integral thermistors to ensure accurate and rapid automatic temperature compensation. The sturdy polypropylene standard bushing is modular for easy, inexpensive replacement. A PVDF or 316 stainless steel bushing can also be ordered. The metal portion is available in either 316 stainless steel (standard) or titanium.

Note: Special Order, CS40 and CS41, High Temperature/High Pressure sensors available upon request.

Applications

Deionization (DI) and distillation ultrapure water treatment systems
Electronics
Pharmaceuticals
Laboratories
Food Processing
Plating
Power Plants
Boiler Condensate
Process Control

Features

7 Resistivity ranges from 0-200 Kilohms to 0-20 Megohms-cm

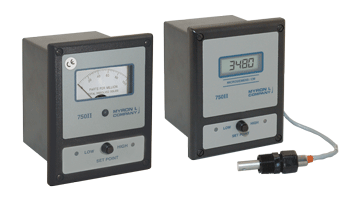

Choice of 3½ digit display or analog meter
Automatic temperature compensation to 25°C
Isolated 0-10 VDC Recorder Output standard
IP65/NEMA 4X water resistant and corrosion-proof enclosure
Built-in electronic calibration
Single set point/alarm standard
Adjustable setpoint hysteresis
Solid State 24 VDC Output
10 amp relay operates on choice of increasing or decreasing reading
LEDs show "above/below" alarm/control status
Push-to-test set point check
Internal set point discourages unauthorized adjustment
Selectable 115/230 VAC
CE Certified
Reliable, easily installed sensor

Options Include:

Second Alarm/Control Module
4-20 mA Isolated Output
Piezo Electric Alarm
3½ Digit Backlit Display
Temperature Module
24 VAC Isolated Power Supply
24 VDC Isolated Power Supply

Sensor Specifications

Constant: 0.05
Temperature Compensation: Two integral temperature sensors provide automatic TC to 25ºC.
Pressure/Temp Limits: 100 psi/690 kPa @ 212ºF/100ºC.
Bushing: Modular Polypropylene threaded 3/4” NPT. 1/2” PVDF or 316 stainless steel fittings (optional).
Cable: Shielded 10 ft./3 meters standard; 25 and 100 ft./ 8 and 30 meter lengths available.
Dimensions: Metal portion 30 L x 13 Dia. mm/ 1.2 L x .5 Dia. in.; overall length 91 mm/3.6 in.
