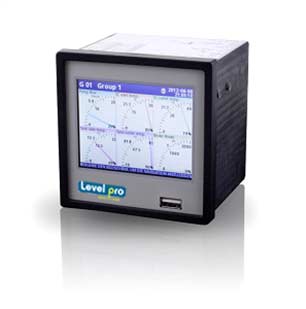

Levelpro ITC 800 Multichannel Process Display with Datalogger
 Levelpro ITC 800 Multichannel Process Display with Datalogger, Contacts and Analogue Outputs.
Functional Range Standard
-
Configuration of max. 90 channels via inputs, outputs, controller, profiles
-
Connection of channels via mathematical / logical functions
-
8 integrated PD / PI / PID controller
-
logging of max. 90 channels
-
2 selectable measuring rates
(max. 10Hz)
-
extensive triggering functions
-
internal memory 1,5 GB
-
data transfer via USB stick / Ethernet
-
front panel housing 144 x 144 mm
-
graphic 5.7” TFT monitor, touchscreen
-
3 free fittable slots, 33 different input / output modules
-
-
communication interface:
3 x RS-485, 1 x RS-232, (Modbus RTU)
2 x USB-Host-Port,
Ethernet (Modbus TCP, Java Applets)

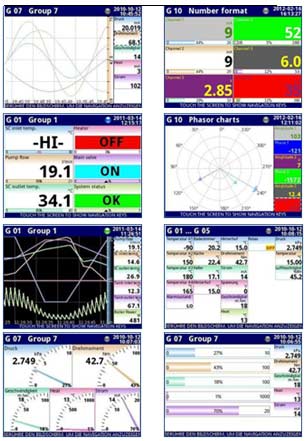

Display Modes
|
