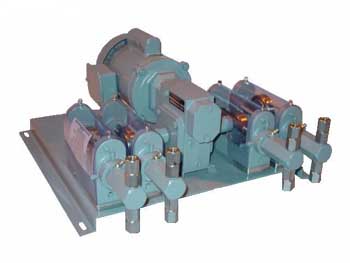

V-10 Series Pumps with a single drive to four pump heads. Stroke lengths and flow rates are calculated per head. All the various piston head sizes are interchangeable which makes application changes in the field simple. The standard simplex pump can readily be converted to a quad pump in the field. Multiple head pumps can be fitted with identical heads or different sized heads for custom applications. All V-10 pumps are supplied with a pressure relief valve for each pump head.
If opting to use your own motor, ensure motor's compatibility with the pump by using a 56C frame 1750RPM flange drive motor.
Drive Motor Codes
V-10 Series Pumps
V-10 Series Installation Manual
Find V-10 Quad Piston Metering Pumps By Diameter
1/4" | 3/8" | 1/2" | 5/8" | 1"
1" Diameter Piston
V-10 4801 Quad Piston Metering Pumps
- Per Head 1.2 - 6.0 GPD (gallons per day)
- 0.05 - 0.25 GPH (gallons per hour)
- 0.106 - 0.53 ounces per minute
- 4.6 - 23.0 LPD (liters per day)
- 0.19 - 0.95 LPH (liters per hour)
- 3.16 - 15.8 milliliters per minute
- Per Head output rated at 500 PSI (34.5 BAR) maximum pressure.
- Per Head 1" diameter piston.
- Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 1 SPM (strokes per minute).
- It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
- Connections: 1/2" NPT Female.
- Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
- Includes: pressure relief valve (4) and instruction manual.
V-10 4806 Quad Piston Metering Pumps
- Per Head 7.2 - 36.0 GPD (gallons per day)
- 0.3 - 1.5 GPH (gallons per hour)
- 0.64 - 3.2 ounces per minute
- 27.2 - 136.0 LPD (liters per day)
- 1.14 - 5.7 LPH (liters per hour)
- 18.92 - 94.6 milliliters per minute
- Per Head output rated at 500 PSI (34.5 BAR) maximum pressure.
- Per Head 1" diameter piston.
- Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 6 SPM (strokes per minute).
- It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
- Connections: 1/2" NPT Female.
- Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
- Includes: pressure relief valve (4) and instruction manual.
V-10 4812 Quad Piston Metering Pumps
- Per Head 14.4 - 72.0 GPD (gallons per day)
- 0.6 - 3.0 GPH (gallons per hour)
- 1.28 - 6.4 ounces per minute
- 54.5 - 272.5 LPD (liters per day)
- 2.28 - 11.4 LPH (liters per hour)
- 37.8 - 189.0 milliliters per minute
- Per Head output rated at 500 PSI (34.5 BAR) maximum pressure.
- Per Head 1" diameter piston.
- Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 12 SPM (strokes per minute).
- It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
- Connections: 1/2" NPT Female.
- Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
- Includes: pressure relief valve (4) and instruction manual.
V-10 4818 Quad Piston Metering Pumps
- Per Head 19.2 - 96.0 GPD (gallons per day)
- 0.8 - 4.0 GPH (gallons per hour)
- 1.7 - 8.5 ounces per minute
- 72.6 - 363.0 LPD (liters per day)
- 3.0 - 15.0 LPH (liters per hour)
- 50.48 - 252.4 milliliters per minute
- Per Head output rated at 500 PSI (34.5 BAR) maximum pressure.
- Per Head 1" diameter piston.
- Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 18 SPM (strokes per minute).
- It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
- Connections: 1/2" NPT Female.
- Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
- Includes: pressure relief valve (4) and instruction manual.
V-10 4830 Quad Piston Metering Pumps
- Per Head 33.6 - 168.0 GPD (gallons per day)
- 1.4 - 7.0 GPH (gallons per hour)
- 3.0 - 15.0 ounces per minute
- 127.2 - 636.0 LPD (liters per day)
- 5.3 - 26.5 LPH (liters per hour)
- 88.32 - 441.6 milliliters per minute
- Per Head output rated at 500 PSI (34.5 BAR) maximum pressure.
- Per Head 1" diameter piston.
- Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 30 SPM (strokes per minute).
- It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
- Connections: 1/2" NPT Female.
- Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
- Includes: pressure relief valve (4) and instruction manual.
V-10 4860 Quad Piston Metering Pumps
- Per Head 67.2 - 336.0 GPD (gallons per day)
- 2.8 - 14.0 GPH (gallons per hour)
- 6.0 - 30.0 ounces per minute
- 254.4 - 1272.0 LPD (liters per day)
- 10.6 - 53.0 LPH (liters per hour)
- 176.66 - 883.3 milliliters per minute
- Per Head output rated at 500 PSI (34.5 BAR) maximum pressure.
- Per Head 1" diameter piston.
- Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 60 SPM (strokes per minute).
- It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
- Connections: 1/2" NPT Female.
- Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
- Includes: pressure relief valve (4) and instruction manual.
