Benchtop Temperature Controllers

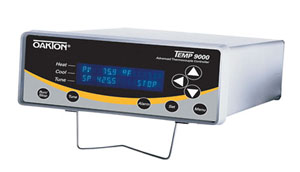

Oakton® Temp 9000

Benchtop Temperature Controllers Oakton® Temp 9000

• Outlet receptacle allows for direct plug-in of heating devices such as hot plates, heat tapes, or mantles.

These temperature controllers can be used for a wide variety of applications including pilot process plants, R & D labs, or for OEM requirements. Rear panel output receptacle for direct plug-in of heaters and other resistive devices. Field calibrations help to improve system accuracy by entering the offset value to correct for individual probe error.

Simultaneously view both the measured and set point on the two-line alphanumeric display. Temperature scale selectable to read in ºF, ºC, K (Kelvin), or ºR (Rankine). Front panel LEDs indicate output and alarm conditions.

The 115 VAC models include a 6-ft (1.8-m) power cord and US standard plug and receptacle; the 230 VAC models feature an IEC cord set and universal receptacle. Built-in grid support bracket allows the unit to be mounted onto a laboratory frame or grid.

Safety features—Output power to load device is automatically shut down in the event of a broken sensor or control loop break. Overtemperature protection shuts down the system if the user-settable over-temperature or timer is exceeded. Outlet power receptacle is fused separately from the controller for added safety. Audible and visual out-of-range alarms are also included.

Oakton Temp 9000/9500 Standard Benchtop Temperature Controllers

Control type: on/off
Resolution: 0.1º; 1º above 999.9º and below –99.9º
Accuracy: Types J, K, T, E, and N: +/-0.1% of reading, +/-0.7ºF (0.4ºC) above –248ºF (–100ºC); +/-0.1% of reading, +/-2ºF (1ºC) below –248ºF (–100ºC) Types B, R, and S: +/-0.1% of reading, +/-1.8ºF (1.0ºC)
Display: LCD
Operating ambient: 32 to 104ºF (0 to 40ºC); 0 to 90% RH, noncondensing
Control output: powered receptacle rated for 115/230 VAC, 10 A max
Alarm output: one SPDT relay rated for 230 VAC, 2 A max; resistive
Dimensions (W x H x D): 8" x 33/4" x 9" (20.3 x 9.5 x 22.9 cm)
