Portable Thermometer

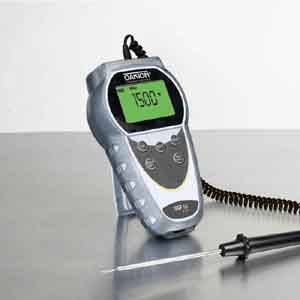

Oakton Temp 16 RTD Thermometer

Portable Thermometer Oakton Temp 16 RTD Thermometer

Temp 16, RTD Thermometer, Oakton InstrumentsHeavy-duty thermometer offers versatility and accuracy in a compact design.

  • 3-way hands-free operation

  • Large, easy-to-read screen with backlight

  • Rugged armor is built to withstand the toughest conditions

  • Easy-to-use automatic field calibration ensures accurate readings

Temp-16 Thermometer features a five-button control panel, Min/Max and Hold functions,ºF/ºC selection, auto shutoff, and low-battery indicator. These robust and reliable meters work in any environment from the lab to the production floor.

The available sturdy armored construction protects against knocks and jars. Meters are ergonomically designed for both large and small hands alike. The sealed keypad and ABS plastic case meet IP54 standards for splash resistance.

Each thermometer is individually factory calibrated. Automatic field calibration is easily performed: simply place the probe in a container packed with ice, fill with water, then press the “CAL” button—meter automatically recognizes the freezing point.

OAKTON’s exclusive “3-WAY HANDS-FREE” capability allows “hands-free” operation—use the built-in stand on a table top, attach the meter to metal objects through magnets inserted into the armor boot, or hang from a pipe or belt using the hook-and-loop strap.

Meter comes standard with the integral stand; the “hands-free” option adds magnets and strap (order separately below).

Oakton Temp 16 RTD Thermometer Manual

Type RTD
Range –328 to 1562ºF (–200 to 850.0ºC)
Resolution From –328 to –148ºF (–200 to –100ºC): 1ºF/ºC
From –148 to 392ºF (–99.9 to 199.9ºC): 0.1ºF/ºC
From 392 to 1562ºF (200 to 850ºC): 1ºF/ºC
Accuracy From –328 to –148ºF (–200 to –100ºC): +/-4ºF (+/-2ºC)
From –148 to 392ºF (–99.9 to 199.9ºC): +/-0.4ºF (+/-0.2ºC)
From 392 to 1562ºF (200 to 850ºC): +/-4ºF (+/-2ºC)
Input connector Standard thee-pin connector
Display 4-digit, custom dot matrix display; 1⁄4" x 1⁄2" digits, 21⁄4" x 11⁄2" backlit viewing area
Power Three AA batteries (included)
Probe Not included
Dimensions 4"W x 7"H x 1.5"D (w/o armor); 4"W x 7"H x 2"D (w/ armor)
Shipping weight 0.58 lbs
