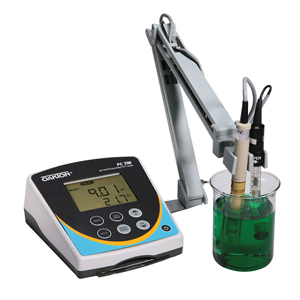

Benchtop pH/CON Meter Oakton pH/CON 700 Benchtop Meter
 Easily toggle between pH, mV, conductivity, TDS, and temperature measurements at the touch of a button
-
Space-saving design takes up less room on the bench than other meters
-
Large display lets you see your measurements from across the lab
-
Conductivity and TDS autoranging chooses the best resolution for each measurement
The pH/CON 700 meter offers a new compact design that is over 40% smaller than other benchtop meters. The large display is easy to read even at a distance. Dual-display allows you to read both a measured parameter and temperature at a glance. The meter features pH auto-buffer recognition for both USA and NIST buffer sets (1.68, 4.01, 7.00, 10.01 and 12.45 or 1.68, 4.01. 6.18. 9.86, and 12.45), automatic or manual temperature compensation, temperature selectable in either ºF or ºC, display HOLD, and water-resistant membrane keypad.
Previous calibration points, electrode slope and offset, and conductivity/TDS cell constants are stored in memory for quick and easy retrieval. The convenient pull-out quick reference card keeps keypad functions at your fingertips.
pH/CON 700 Benchtop Meter Manual
| Measures |
pH, mV, conductivity, total dissolved solids (TDS), and temperature (ºC or F) |
| pHRange |
-1.99 to 16.00 |
| pHResolution |
0.01 |
| pHAccuracy |
+/-0.002 |
| pHCalibration |
Up to 5 points (USA: 1.68,4.01, 7.00, 10.01, 12.45 or NIST: 1.68,4.01, 6.86, 9.18, 12.45) with autobuffer recognition |
| mVRange |
+/-1999 mV |
| mVResolution |
0.1 mV (+/-199.9 mV) / 1 mV (beyond) |
| mVAccuracy |
+/-0.2 mV (+/-199.9 mV) / +/-2 mV (beyond) |
| mVCalibration |
Offset up to +/-150 mV |
| ConductivityRange |
0.00 ìS/cm to 200.0 mS/cm |
| ConductivityResolution |
0.01 ìS; 0.1 ìS ; 1 ìS ; 0.01 mS ; 0.1 mS |
| ConductivityAccuracy |
+/-1 % full scale |
| ConductivityCalibration |
Automatic (4 points); maximum 1 per range; manual (5 points); maximum 1 per range |
| TDSRange |
0.00 ppm to 100 ppt @ 0.5 TDS factor (to 200 ppt @ 1.0 TDS factor) |
| TDSResolution |
0.01 ppm; 0.1 ppm ; 1 ppm ; 0.01 ppt ; 0.1 ppt |
| TDSAccuracy |
+/- 1 % full scale |
| TDSCalibration |
Up to 5 points |
| TemperatureRange |
0.0 to 100.0 ºC / 32.0 to 212.0 ºF |
| TemperatureResolution |
0.1 ºC / 0.1 ºF |
| TemperatureAccuracy |
+/- 0.5 ºC / +/- 0.9 ºF |
| TemperatureCalibration |
Off set in 0.1 º increments; off set range: +/- 5 ºC / 9 ºF |
| Memory |
Up to 100 data sets |
| Dimensions |
6 1/8" x 6 7/8" x 2 3/4" (15.5 x 17.5 x 6.9 cm) |
|
