Sotera Digital Register - Stainless Meter: Mini Oval Gear

Sotera offers a full range of positive displacement TM Oval Gear Meters with weights and measures custody transfer accuracy for the measurement of a wide range of Industrial chemicals, heavy oils, glycols, lube oils, and petro-chemicals. These meters are able to handle the pressure and maintain their accuracy due to the use of only two oval gears eliminating metal-metal contact, fewer seals, low differential pressure, and less slippage due to the patented wave form gear design.

The TM Series is well suited for use in additive injection service, low-flow industrial process, small volume batching, and flow lubricants to critical bearing surfaces. Combined with electronic registers it is possible to output analog, digital, and multi-point calibration utilizing NEMA intrinsically enclosures either attached to the meter or mounted remotely. The TM Series is compact and accurate with an affordable initial cost, long lasting performance, and easy maintenance making the TM Series the intelligent choice.

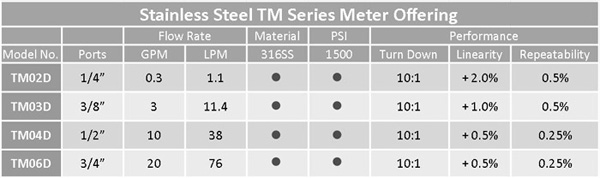

The Stainless Steel TM Series offers a full range of metering options ranging from ¼, 3/8, ½, to ¾ in sizes with a .3-20 GPM at a 1500 PSI. These base meters are available in a wide range of options to accommodate different viscosities, chemical compatibilities, pulse output resolution / pulse output type, as well as optional electronic registers, totalizers and batch controllers. The Flow meters carry a CE mark, the pulsers are UL, cUL, and ATEX listed for intrinsically safe barrier when powered through a UL or ATEX listed barrier with appropriate ratings.
