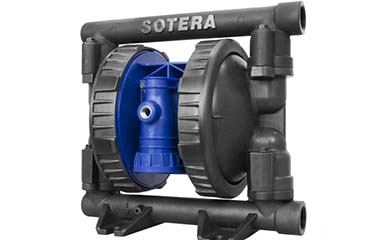

Sotera SP100 Series 1" Air Operated Double Diaphragm Pumps

Sotera, SP100 Series, 1", Air Operated Double Diaphragm Pumps, AODD Pumps, Metallic, Non-MettalicThe SP100 Series Air-Operated Double Diaphragm Pump can be configured in materials that are resistant to industrial chemicals and proven to provide complete compatibility coverage for a wide range of fluids.

With the highest flow rate in the industry and the lowest pulsation, you can quickly and efficiently transfer fluid without the splash and mess. Patented Air Valve design provides the low pulsation (low pressure drop) and the patented ring construction provides the lowest turnaround time in maintenance. You can clean the check valves quickly with the threaded rings, no nuts or bolts to lose.

With its extensive list of features, the SP100 Series outperforms the competition time and time again.

SP100 Series 1" Metallic Air Operated Double Diaphragm Pumps

SP100-10N-PA-HHH

SP100-10N-PA-HHH

1 in Metallic AODD Pump

  • 1 in NPT ports
  • Hytrel™ diaphragm, balls and seats
  • 56 GPM (211 LPM)
    maximum flow rate
SP100-10B-PA-HHH

SP100-10B-PA-HHH

1 in. Metallic AODD Pump

  • 1 in BSPP ports
  • Hytrel™ diaphragm, balls and seats
  • 56 GPM (211 LPM)
    maximum flow rate

SP100-10B-PA-SSS

SP100-10B-PA-SSS

1 in. Metallic AODD Pump

  • 1 in BSPP ports
  • Santoprene® diaphragm, balls and seats
  • 56 GPM (211 LPM)

SP100-10N-PA-SSS

SP100-10N-PA-SSS

1 in. Metallic AODD Pump

  • 1 in BSPP ports
  • Santoprene® diaphragm, balls and seats
  • 56 GPM (211 LPM)

SP100-10B-CA-HHH

SP100-10B-CA-HHH

1 in. Metallic AODD Pump

  • 1 in BSPP ports
  • Hytrel™ diaphragm, balls and seats
  • 56 GPM (211 LPM) maximum flow rate
SP100-10N-CA-HHH

SP100-10N-CA-HHH

1 in. Metallic AODD Pump

  • 1 in NPT ports
  • Hytrel™ diaphragm, balls and seats
  • 56 GPM (211 LPM) maximum flow rate



SP100 Series 1" Non-Metallic Air Operated Double Diaphragm Pumps

SP100-10F-PP-SSS

SP100-10F-PP-SSS

1 in Non-Metallic
AODD Pump

  • 1 in ANSI/DIN flanges
  • Santoprene® diaphragm, balls and seats
  • 51 GPM (193 LPM) maximum flow rate
SP100-10F-PF-TTF

SP100-10F-PF-TTF

1 in Non-Metallic
AODD Pump

  • 1 in ANSI/DIN flanges
  • PTFE with EPDM backer diaphragm, PTFE balls and PVDF seats
  • 51 GPM (193 LPM)


SP100-10F-PP-TTP

SP100-10F-PP-TTP

1 in Non-Metallic
AODD Pump

  • 1 in ANSI/DIN flanges
  • PTFE with EPDM backer diaphragm, PTFE balls and Polypropylene seats
  • 51 GPM (193 LPM)
