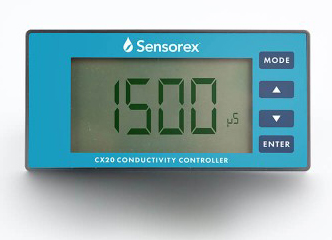

Sensorex CX20 Conductivity Controller
 The CX20 conductivity / EC controller is a convenient and cost effective solution for monitoring and maintaining conductivity. Save space in your panel with the small footprint 1/8 DIN case. Use the two sets of relay outputs to program process control, including management of alarms and chemical dosage systems.
Easy to install 1/8 DIN Case Two sets of programmable relays for conductivity or resistivity Clear LCD displays conductivity, resistivity, or temperature 100-240 VAC power supply
Note: This conductivity controller is only compatible with sensors that have spade lug or tinned lead connectors.
Product Specifications
Cell Constant: 0.01, 0.1, 1.0 (2 electrode) Reference Temperature: 25°C, factory set Temperature Coefficient: 2.00 or 0.00%, user selectable Temperature Sensor: Thermistor: 10k ohm at 25°C Operating Temperature: -10°C to 120°C (+/- 0.3°C, 0.1°C resolution) Relays: 5A at 115VAC or 2.5A at 220VAC (resistive only) Maximum Load: 500 ohm Output Accuracy: +/- 0.03mA Isolation Voltage: 500VDC Keys: Audio feedback for all keys Power: 100VAC to 240VAC, 50/60Hz Ambient Temperature Range: 0.0°C to 50.0°C Enclosure: 1/8 DIN (3.78? L x 3.54? W x 1.89? H)
