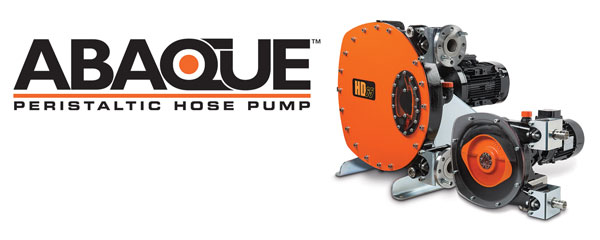

Abaque Peristaltic Hose Pumps

Abaque® Series peristaltic hose pumps are manufactured and shipped from the PSG® facility in North Wales, Pennsylvania. Abaque Series pumps feature a seal-less design that eliminates leaks and product contamination, and have the ability to run dry continuously without adversely affecting the pump’s performance.

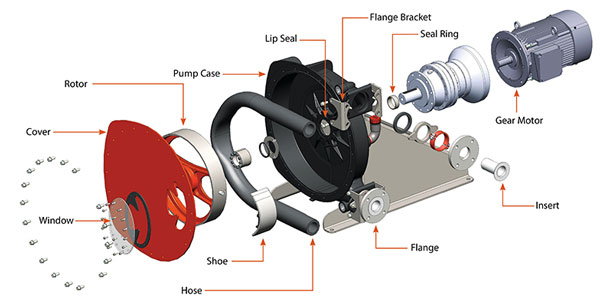

Construction

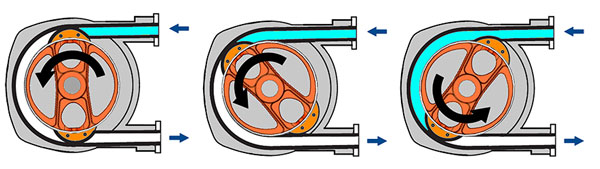

The Peristaltic Principle

• High performance: Seal-less design eliminates leaks and product contamination, and have the ability to run dry continuously without adversely affecting the pump’s performance, pressure, and accuracy (no slip).

• Reliability: The Abaque pump has none of the usual parts that create problems on other pumps: seats, valves, mechanical seals. The hose is the only replacement part.

• Handling of the toughest pumping challenges, including extremely abrasive and aggressive fluids, solid loaded liquids, as well as shear sensitive and viscous materials.

Features and Benefits

• Excellent self-priming

• Capable of running in forward or reverse

• Solid construction and advanced design results in reduced maintenance and repairs

• Handles your toughest pumping needs from abrasive and aggressive fluids to sheer sensitive and viscous materials


Options

• Non-metallic insert (PPH, PVDF)


• Hose Options:
  - Natural Rubber (NR): Highly resilient with excellent abrasion resistance and strength. Generally resistant to diluted acids and alcohols. Suitable for temperatures from -17°C to 70°C (0°F to 158°F).
  - Nitrile Buna Rubber (NBR): Highly wear resistant to oily products. Suitable for temperatures from -17°C to 70°C (0°F to 158°F).
  - Nitrile Buna Rubber with FDA liner (NBR FDA): Used in hygienic applications
  - Ethyl Propylene Rubber (EPDM): High chemical resistance, especially with concentrated acids, alcohols and ketones. Suitable for temperatures from -17°C to 80°C (0°F to 176°F).
  - Hypalon®: High resistance to oxydant as well as to concentrate bases and acids

• Hose-failure detectors

• Vacuum kits


Markets

• Oil & Gas

• Soap & Detergents

• Chemical

• Industrial Water/Wastewater Treatment

• Municipal Water/Wastewater Treatment

• Paint & Coatings

• Mining


Pump Models

HDN10, HDN15, HDN20

Installation Operation Maintenance (IOM)  HDN10-15-20 Installing Peristaltic Hoses  UE-1103-M00

Performance Curves  HDN10  HDN20

Materials of Construction (MOC)  Materials of Construction

HDN25, HDN32, HDN40, HDNX40

Installation Operation Maintenance (IOM)  HDN25-32-40-X40 Installing Peristaltic Hoses  UE-1103-M00

Performance Curves  HDN25  HDN40  HDNX40

Materials of Construction (MOC)  Materials of Construction

HDN50, HDN65

Installation Operation Maintenance (IOM)  HDN50-65 Installing Peristaltic Hoses  UE-1103-M00

Performance Curves  HDN65

Materials of Construction (MOC)  Materials of Construction

HDN80, HDNX80, HDN100

Installation Operation Maintenance (IOM)  HDN80, HDNX80, HDN100

Performance Curves  HDN80  HDNX80  HDN100
