| Fitting Type: |
NPT, BSP, ANSI Flanged, DIN Flanged |
| 1/2” to 2” - NPT (Male), BSP (Male) (Rc Thread) |
| 3” & 4” ANSI Flanged - Polymer or Steel Flange |
| 3” & 4” DIN Flanged - Steel Flange |
| Housing Material: |
Noryl® |
| Pipe Sizes: |
1/2”, 3/4”, 1”, 1-1/2”, 2”, 3”, 4” |
| Flow: |
Velocity |
0.25 to 15 FPS |
| 1/2” (05) |
0.15 - 10 GPM |
0.56 - 38 LPM |
| 3/4” (07) |
0.3 - 20 GPM |
1.13 - 76 LPM |
| 1” (10) |
0.6 - 40 GPM |
2.27 - 151 LPM |
| 1-1/2” (15) |
1.2 - 80 GPM |
4.54 - 303 LPM |
| 2” (20) |
2.25 - 150 GPM |
8.5 - 568 LPM |
| 3” (30) |
4.5 - 300 GPM |
17 - 1136 LPM |
| 4” (40) |
9 - 600 GPM |
34 - 2271 LPM |
| *Accuracy (% of Reading): |
Size |
±2% |
±0.5% |
|
1/2” (05) |
0.15 - 0.6 GPM /
0.56 - 2.27 LPM |
0.61 - 10 GPM
2.28 - 38 LPM |
|
3/4” (07) |
0.3 - 1.2 GPM /
0.56 - 4.54 LPM |
1.21 - 20 GPM /
4.55 - 76 LPM |
|
1” (10) |
0.6 - 2.4 GPM /
2.27 - 9.08 LPM |
2.41 - 40 GPM
9.09 - 151 LPM |
|
1-1/2” (15) |
1.2 - 4.8 GPM /
4.54 - 18.17 LPM |
4.81 - 80 GPM
18.18 - 303 LPM |
|
2” (20) |
2.25 - 9.0 GPM /
8.5 - 34.07 LPM |
9.01 - 150 GPM /
34.08 - 568 LPM |
|
3” (30) |
4.5 - 18.0 GPM /
17 - 68.14 LPM |
18.01 - 300 GPM
68.15 - 1136 LPM |
|
4” (40) |
9 - 36.0 GPM
34 - 136.28 LPM |
36.01 - 600 GPM /
136.29 - 2271 LPM |
| Operating Temperature Range: |
1/2" - 2" |
32o F to 210o F (0o C to 99oC) |
|
| 3" & 4" |
32o F to 180o F (0o C to 82oC) |
| Ambient Temperature Range: |
All Sizes |
0o F to 140o F (-18o C to 60oC) |
|
Typical
K-Factor: |
1/2” (05) |
4347 PPG |
1158.5 PPL |
| 3/4” (07) |
1937 PPG |
511.8 PPL |
| 1” (10) |
1089 PPG |
287.7 PPL |
| 1-1/2” (15) |
484.1 PPG |
127.9 PPL |
| 2” (20) |
400 PPG |
105.7 PPL |
| 3” (30) |
121 PPG |
32.0 PPL |
| 4” (40) |
68.1 PPG |
18.0 PPL |
Power Supply:
Externally Powered |
Voltage Supply (Min): 12VDC or VAC |
| Voltage Supply (Max): 36VDC or VAC |
| Consumption: |
Max current consumption (QSE with QSB): 75mA |
| Max current consumption (QSE with QSI): 150mA |
Wetted
Materials: |
Body |
Noryl® |
| Electrodes |
316L SS |
| Seals |
NBR O-Rings |
Frequency Range:
All Sizes |
10 Hz Minimum - 1,000 Hz Maximum (with 09 Display) |
10 Hz Minimum - 3,000 Hz Maximum
(with Blind Pulse Out) |
| Calibration Report: |
Standard |
| N.I.S.T. Available |

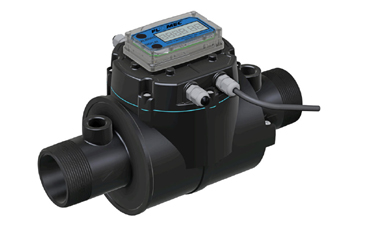

The QSE Mag Series from GPI/Flomec is a dependable highly accurate electromagnetic Flowmeter designed for flow and usage monitoring in commercial applications. The Noryl® housing and flow tube offer a lightweight, easy-to-install Mag Meter that is resistant to heat (210°F / 99°C) and compatible with many water-based liquid solutions.The QSE Mag Meter monitors flow rate and total flow in a wide variety of applications including: HVAC, Turf/ Irrigation and other water reclamation applications.
