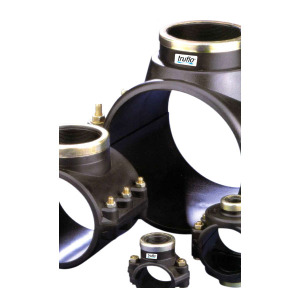

    Truflo® Clamp Saddles LSS Series For Flow Meters

    Truflo® Clamp Saddles LSS Series For Flow Meters

    Truflo offers to the market one of the most Complete ranges in clamp saddles, both in measurement and variety with single or double outlets and with or without reinforcement.

















    Techmical Information

    1. Truflo Clamp Saddles can be used either with P.E. or P.V.C. Pipes
    2. The Use of teflon tape is advised.
    Working Temperature Working Nominal Diameter of Pipe
    2"PN PSI 3", 4", 6"PN PSI 8"PN PSI
    -4 to 68ºC 232 PSI 150 PSI 95 PSI
    -4 to 140ºC 95 PSI 95 PSI 95 PSI
    -40 to 176ºC 60 PSI 60 PSI 60 PSI

    Pressure

    2" 232 PSI
    3", 4", 6" 145 PSI
    8" 87 PSI

    Materials

    1. PPGF. – Polypro Glass Filled
    2. O-ring
    3. 316 SSt
    4. Reinforced Outlet 316 SSt

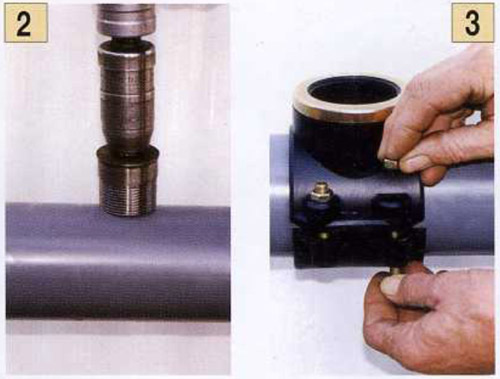

    1.Use a clamp Saddle as a template to mark the hole
    2.Ise a appropiate tool to make the hole.
    3.Clean away any shaving and place the O-ring in position, align the outlet with the hole and screw in place.

    Clamp Saddles LSS Series Data Sheet
