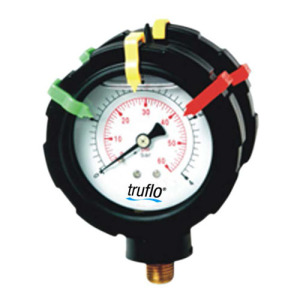

Truflo® OBS-DGO Series Plastic Pressure Gauge
 2x Series Double Sided Plastic Pressure Gauge
Industry’s First Plastic Gauge – No Filling Required ‘Plug & Play’
Features
-
-
-
-
Suitable for Corrosive Environments
-
All Plastic & Gauge (Filled)
-
-
Completely Corrosion Resistant
-
Extra Large Colored Display
-
Highest Accuracy in Industry 1.5%
-
Factory Pre-Filled Glycerin
-
-
-
-
Perfect Mate for Plastic Isolators
Specifications
| SPECIFICATION |
DESCRIPTION |
| Dial Diameter |
Large 2-1/2" (Big Numbers-Clear Markers) |
| Mounting |
Direct Mount, Bottom Connection MNPT 1/4" |
| Housing |
PVDF or Polypro |
| Lens |
High Impact Polycarbonate – Double Sided |
| Dial |
Red & Black Scale White Background, dial arc 270º |
| Measuring Principle |
Bourdon Tube-SS316-Brass |
| Movement |
SS316-Brass (Non Wetted) |
| Gauge |
Red, Yellow, Green Moveable Plastic Markers-Pressure
Range Pointers Fitted on the Bezel |
| Connection |
1/4" MNPT |
| Filling |
Options: Glycerin (Standard) Silicon Filled (Optional) |
| Accuracy |
+/-1.5% F.S. |
| Operating temperature |
Max. Working Temp. PVDF-195ºF, PP-170ºF |
| Pressure Range |
Standard range 0-60 / 0-100 / 0-160 PSI (Second Scale: Bar)
Other units available, e.g., bar, MPa, etc. |
OBS-DGO Series Data Sheet
|
