    Truflo® "2 Vu" Strainer Complainer Plastic
    Pressure Gauge

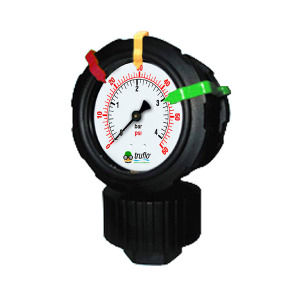

    Truflo® "2 Vu" Strainer Complainer Plastice Pressure Gauge

    Double Sided All Plastic Liquid Filled Pressure Gauge & Isolator

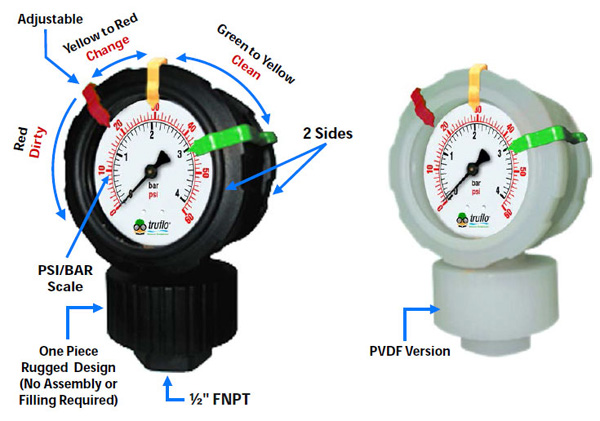

    Filter and Strainer Change-Out Visual Alert

    Features

    • Industry's First All Plastic Double Sided Gauge

    • Heavy Duty Rugged Design; Simple to Install

    • Completely Corrosion Resistant

    • Designed to Act as Visual Pressure Alert for Change-Out or BAG Replacement

    • Extra Large Colored Display

    • Reduces Pressure Surges caused by Water Hammer or Metering Pump Pulsations

    • Highest Accuracy in Industry 1.5%

    • Factory Prefilled-Glycerin or Silicone

    • No Filling Required

    • One-Piece Molded Design (No Assembly)

    • Suitable for Corrosive Media + Slurries

    Specifications

    Dial Diameter Large 2-1/2" (Big Numbers-Clear Markers)
    Mounting Direct Mount, Bottom Connection FNPT 1/2"
    Housing PVDF or Polypro – Viton <PTFE Diaphragm – One Piece
    Molded Design (No Assembly or Filling Required)
    Lens Safety Glass
    Dial Red/Black Scale White Background, dial arc 270º
    Measuring Principle Bourdon Tube-SS316 (Non Wetted)
    Diaphragm (wetted part) – FPM (Standard)
    Movement SS316 (Non Wetted)
    Gauge 3 Adjustable Plastic Markers-Pressure Range Pointers fitted on the Bezel (Green, Yellow, Red)
    Connection 1/2" FNPT
    Filling Glycerin Filled
    Accuracy +/-1.5% F.S.
    Operating temperature Max. Working Temp. PVDF-195ºF, PP-170ºF
    Pressure Range Standard range 0-60 / 0-100 / 0-160 PSI (Second Scale: Bar)
    Other units available, e.g., MPa, etc.



    Strainer Complainer Data Sheet
