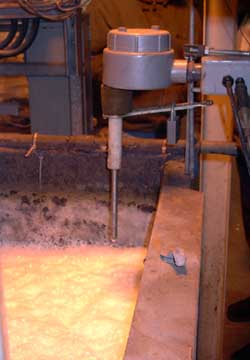

 Overview:
The Model MX-8000 Foam Level Detector can be configured to
trigger an alarm output and/or turn on an anti-foam chemical
pump if foam is detected.
Applications include foam control in cooling towers, water
treatment plants and
process plants. An ultra-high sensitivity adjustment allows
the MX-8000 to
respond to very fine light foam through thick frothy foam.
An adjustable built-in timer can be set to maintain a minimum
or maximum run time for an anti-foam pump if foam is detected.
The electronic board is mounted in a remote enclosure with
optional power cord or pig-tail receptacles for an anti-foam
pump.
 Specifications
Construction:
Solid stainless steel rod
Teflon insulator with Viton seals
Enclosure:
Explosion-proof housing
Power:
120 VAC 60 Hz, 2 watts
Output:
Two DPDT relays, 5 Amp resistive
Fail Safe:
Selectable high or low
Time Delay:
Adjustable from 1 second to 2 hours
Temperature:
-30ºF to 450ºF
Rating:
Class I, Group C,D. Class II, Group E,F,G
Warranty: 2 years
|
