MEMDOS LB Motor-Driven Diaphragm Dosing Pumps

Diaphragm dosing pumps are leak-free, and are therefore suitable for highly aggressive or toxic media. Depending on the gear type, the diaphragm allows pressures up to 16 bar. Diaphragm dosing pumps are fitted with a separation chamber as standard. If a crack forms in the diaphragm due to wear, this prevents the medium from flooding the system components or the pump itself. The medium is controlled and flows through a downpipe to the collecting basin. The medium sides of the diaphragms are coated with PTFE.

The dosing quantity can be doubled by using two dosing heads. The largest motor-driven diaphragm dosing pump (Type GMR) has a hydraulically coupled double-diaphragm system.

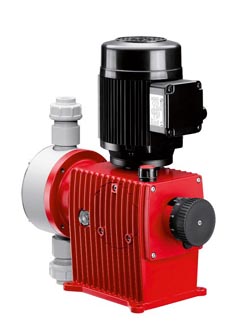

MEMDOS LB

Riding on the crest of the waves

The MEMDOS LB is used when the integration of the pump into controls or control circuits is required. Thanks to the sturdy tappet drive with manual or automatic capacity adjustment, the conveyed media such as acids, lyes, coagulants and flocculants are dosed reliably and precisely. To adapt the dosing capacity, either the stroke length can be adjusted mechanically or the speed of the three-phase motor can be regulated by means of a separate frequency converter. On request, the MEMDOS LB pumps can also be supplied with a double-diaphragm system

• Capacity range 4 – 1020 l/h, up to 16 bar
• Power supply 115 V, 230 V or 400 V
• Material finishes PVC, PP, PVDF and stainless steel
• Infinitely variable stroke length from 0 – 100 %
• A variety of three-phase and alternating current motors
• ATEX versions are available for Zones 1 and 2
• Also suitable for frequency converter operation
• Double-diaphragm system (optional)
• Automatic stroke length adjustment (optional)
