FEDOS DX Electronic Piston Dosing Pumps

Piston dosing pumps are particularly precise dosing units, which are not dependent on pressure. Dosing capacity varies proportionally with the stroke length and can be set to the tiniest repeatable quantities. Two-piston and multiple-piston pumps are therefore particularly suitable for delivering precise mixtures, where different media must be mixed at a constant ratio which can be selected as desired. Using externally controlled drive motors, the total quantity can be varied from 5% to 100% at a constant ratio. Heated heads allow the dosing of media that are torpid when cold. A piston flushing skirt is available as an option, to prevent damaging leaks and protect the packing materials and pistons from abrasive chemicals.

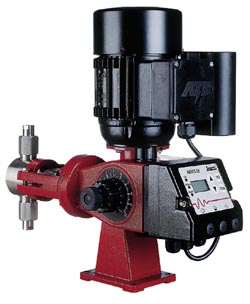

FEDOS DX

Electronic piston dosing pump

The microprocessor-based FEDOS DX combines the properties of the FEDOS series with the latest requirements in dosing technology. It’s used if the pump is to be integrated in controls or automatic control systems. It allows the adaption to a large number of different control signals and system monitoring equipment. Depending on the version, the FEDOS DX can be adjusted continuously between 0 and 142 strokes/min. for internal control. A single stroke follows each contact. In addition, the stroke frequency can be changed by pulse division or multiplication.

• Suitable for accurate mixing tasks
• Capacity range 0.17 to 31.5 l/h, at up to 100 bar
• Minor dependence of the back pressure
• Linear development of the dosing quantity according to the stroke length
• Tappet drive with easy-to-operate capacity adjustment
• Flushing bush optional
