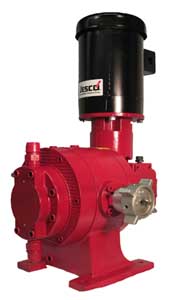

Lutz-JESCO 5700 Series Hydraulically Actuated Tubular Diaphragm Pumps

The 5700 Series is a efficient, quiet hydraulically actuated diaphragm pump. The unique rotary plunger concept has fewer moving parts providing long-lasting durable service, less maintenance and power efficiency. Its compact design saves floor space and still provides heavy duty reliable delivery.

5701 Series Hydraulically Actuated Metering Pump

Hydraulically actuated non-lost motion Diaphragm Pump

The Model 5701 metering pump is a hydraulically actuated non-lost motion (amplitude modulated) diaphragm design. The unique method of actuation by means of a rotating plunger provides smoother, quieter operation at less than 100% capacity. The sine wave characteristics minimize back lash and shock loads to the process system. The Model 5701 is one of the most long lasting pumps in the industry. The pump will provide reliability in the most heaviest workload environments, such as mining, nuclear plants, power plants and refineries/petroleum applications. The 5701 meets API 675 standards.

• A micrometer adjustment allows effortless capacity range of 0-100%
• Operating pressure up to 2000 psig
• Power supply - single phase or 3-phase TE or XP motor
• Built-in pressure relief valves
• Compact design offers high capacity per square foot of space
• Double ball check valves
• High mechanical efficiency reduces power requirements


O&M 5701 Series.pdf
Spec Sheet 5701 Series.pdf

5710 Series Hydraulically Actuated Metering Pump

Hydraulically actuated non-lost motion Diaphragm Pump

Models 5710 metering pumps are an hydraulically actuated non-lost motion (amplitude modulated) diaphragm design. The unique method of actuation, by means of a rotating plunger, provides smoother, quieter operation. The design characteristics minimize back lash and shock loads to the process system. Models 5710 are among the longest lasting pumps in the industry. These pumps will provide reliability in the heaviest workload environments, such as mining, nuclear plants, power plants and refineries/petroleum applications. These pumps meet API 675 standards.

• A micrometer stroke length adjustment allows effortless capacity control of 0-100%
• Operating pressure up to 4000 psig
• Power supply - single phase or 3-phase TE or XP motor
• Built-in pressure relief valves
• Compact design offers high capacity per square foot of space
• Double ball check valves
• High mechanical efficiency reduces power requirements


O&M 5710 Series.pdf
Spec Sheet 5710 Series.pdf

5720 Series Hydraulically Actuated Metering Pump

Hydraulically actuated non-lost motion Diaphragm Pump

Models 5720 metering pumps are of hydraulically actuated non-lost motion (amplitude modulated) diaphragm design. The unique method of actuation by means of a rotating plunger provides smoother, quieter operation. The design characteristics minimize back lash and shock loads to the process system. Models 5720 are among the longest lasting pumps in the industry. These pumps will provide reliability in the heaviest workload environments, such as mining, nuclear plants, power plants and refineries/petroleum applications. These pumps meet API 675 standards.

• A micrometer stroke length adjustment allows effortless capacity control of 0-100%
• Operating pressure up to 940 psig
• Power supply - single phase or 3-phase TE or XP motor
• Built-in pressure relief valves
• Compact design offers high capacity per square foot of space
• Double ball check valves
• High mechanical efficiency reduces power requirements


O&M 5720 Series.pdf
Spec Sheet 5720 Series.pdf

5730 Series Hydraulically Actuated Metering Pump

Hydraulically actuated non-lost motion Diaphragm Pump

Models 5730 metering pumps are of hydraulically actuated non-lost motion (amplitude modulated) diaphragm design. The unique method of actuation by means of a rotating plunger provides smoother, quieter operation. The design characteristics minimize back lash and shock loads to the process system. Models 5730 are among the longest lasting pumps in the industry. These pumps will provide reliability in the heaviest workload environments, such as mining, nuclear plants, power plants and refineries/petroleum applications. These pumps meet API 675 standards.

• A micrometer stroke length adjustment allows effortless capacity control of 0-100%
• Operating pressure up to 370 psig
• Power supply - single phase or 3-phase TE or XP motor
• Built-in pressure relief valves
• Compact design offers high capacity per square foot of space
• Double ball check valves
• High mechanical efficiency reduces power requirements


O&M 5730 Series.pdf
Spec Sheet 5730 Series.pdf
