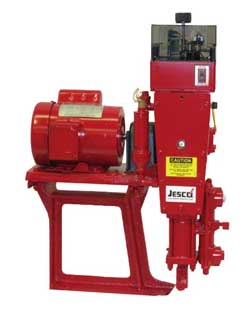

Heavy-duty hydraulically actuated tubular diaphragm pump designed for high capacity and high pressures. Also ideally suited for corrosive liquids such as H2SO4 or slurries.
The simple, yet unique vertical hydraulics eliminates need for complicated vent and refill mechanisms. Prestressed tubular diaphragm handles inconsistent suction conditions and suction lift capabilities to 16 feet.
Performance
- Stroke length control
- Single & 3-phase TE/XP motors
- Optional AC or DC speed control
Materials of Construction
Wetted end selections:
- PP SS Alloy 20 head material
- Hypalon† and Viton† diaphragms
- Built-in hydraulic relief valve protects pump
- Easy maintenance cartridge type check valves
- Single and double ball check valves
Optional Features
- Electric or pneumatic automatic stroke control(AEI/API)
- Polyurethane seats for activated carbon
- Tungsten carbide check valve
- Diaphragm leak detection
- Internal back pressure valve
- Wall or floor mounting
1710 Series Hydraulically Actuated Metering Pump
 The Model 1710 metering pump is a hydraulically actuated tubular diaphragm design. The memory of the pre-stressed diaphragm returns to its exact reference position on every suction stroke giving the pump exceptional accuracy, outstanding lift capabilities and minimal NPSH requirements. A rugged cast iron housing contains a high performance worm and wheel drive that operates in an oil reservoir insuring long life.
- A micrometer stroke length adjustment allows effortless capacity control of 0-100%
- Max. operating pressure up to 2000 psig
- Power supply - single phase or 3-phase TE or XP motor
- Built-in pressure relief valves
- Unique hydraulic vent and refill design
- Single ball check valves
O&M 1710 Series.pdf
Spec Sheet 1710 Series.pdf
1730 Series Hydraulically Actuated Metering Pump
The Model 1730 metering pump is a hydraulically actuated tubular diaphragm design, utilizing a pre-stressed diaphragm and vertical plunger configuration. The memory of the pre-stressed diaphragm returns to its exact reference position on every suction stroke giving the pump exceptional accuracy, outstanding lift capabilities and minimal NPSH requirements. The ability of the diaphragm to withstand higher vacuum prevents premature diaphragm failure. The unique hydraulic system provides the industry with the simplest and most reliable actuated design for metering pumps.
- A micrometer stroke length adjustment allows effortless capacity control of 0-100%
- Pre-stressed tubular diaphragm withstands higher vacuum for longer life
- Max. operating pressure up to 3000 psig
- Power supply - single phase or 3-phase TE or XP motor
- Built-in hydraulic pressure relief valves
- Unique hydraulic vent and refill system
- Single ball cartridge type check valves
- Long term reliability and accuracy
- Tungsten Carbide check valves
O&M 1730 Series.pdf
Spec Sheet 1730 Series.pdf
1740 Series Hydraulically Actuated Metering Pump
The Model 1740 metering pump is a hydraulically actuated tubular diaphragm design, utilizing a pre-stressed diaphragm and vertical plunger configuration. The memory of the pre-stressed diaphragm returns to its exact reference position on every suction stroke giving the pump exceptional accuracy, outstanding lift capabilities and minimal NPSH requirements. The ability of the diaphragm to withstand higher vacuum prevents premature diaphragm failure. The unique hydraulic system provides the industry with the simplest and most reliable design for metering pumps.
- A micrometer adjustment allows effortless capacity range of 0-100%
- Pre-stressed tubular diaphragm withstands higher vacuum for longer life
- Power supply - single phase or 3-phase TE or XP motor
- Built-in pressure relief valves
- Unique vent and refill system
- Single ball cartridge type check valves
O&M 1740 Series.pdf
Spec Sheet 1740 Series.pdf
