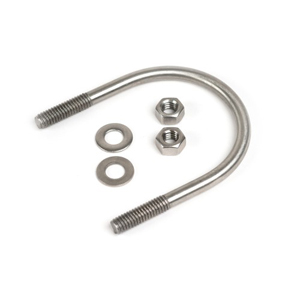

LPMA-002 Pipe Mount Kit for LPM100 Loop-Powered Display

LPMA-002 Pipe Mount Kit for LPM100 Loop-Powered Display

Cable,Assemblies,SensorexThe LPMA-002 is an accessory kit that allows pipe-mounting of the LPM100 loop-powered display meter.

The LPM100 is a durable, loop-powered process meter for use in demanding applications. This rugged, large display meter can be mounted in various configurations and endure harsh environmental conditions. Simple installation and operation make it an ideal solution for process read out monitoring.

  • Durable for harsh environmental conditions

  • Simple set up and operation

  • User-friendly interface

  • Compatible with Sensorex 4-20mA output sensors

  • One year limited warranty

Specification Sheet for LPM100 Loop-Powered Process Meter

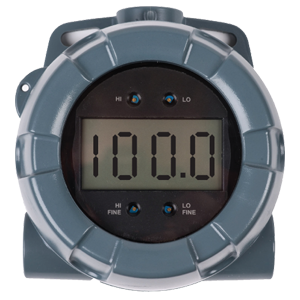

LPM100 Loop-Powered 4-20mA Display

The LPM100 is a durable, loop-powered 4-20mA display for use in process monitoring applications. Monitor various parameters, including UV transmittance, free chlorine, dissolved oxygen, and more. This large display meter can be mounted in various configurations – including pipe mounting with our pipe mount kit. Simple installation and operation make it an ideal solution for process read out monitoring.

  • Compatible with Sensorex 4-20mA output sensors

  • Durable for harsh environmental conditions

  • Simple set up and operation

  • User-friendly interface

  • One year limited warranty

Specifications

  • Accuracy: +/-0.1% of full span ±1 count

  • Temperature Range: -40 to 75°C

  • Calibration Range: 4 mA input: -1000 to +1000; 20 mA between 20 and 2000 counts greater than 4 mA display. Two point linear display span

  • Input: 4-20mA

  • Enclosure: NEMA 4X, IP65 plastic field enclosure

  • Display: 3½ digit LCD, 1" (25.4 mm); -1,999 to 1,999

  • Maximum Voltage Drop: 4 VDC @ 20 mA with loop-powered back-light

  • Input Overload: Over current protection to 2 A max

  • Warranty: One year limited warranty

Specification Sheet for LPM100 Loop-Powered Process Meter

LPM100 Instruction Manual
