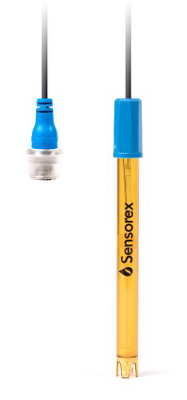

Sensorex pH2100 Flat Tip pH Electrode

Sensorex pH2100 Flat Tip pH Electrode

Agar plates, skin, and electrophoresis gels are all surfaces that may be difficult to measure with a typical glass bulb electrode due to concerns about bulb breakage. To facilitate these and other surface measurements, we created the pH2100 flat tip pH electrode. It has a rugged flat measurement surface, which breaks less easily when it comes in contact with hard materials. This makes it a great choice for measuring slurries, sludges, and viscous samples as well as those containing suspended solids.

•Flat measurement tip for surface measurements and slurries
•Double junction electrode design prevents reference contamination
•Durable Ultem® body
•Booted BNC protects meter connection
•One year limited warranty

Specifications

• Measurement Range: 0-14 pH (low NA+ ion error)

• Response Time: 95% in 5 seconds

• Isopotential: 7.00 pH

• Offset: 0.2%

• Span: > 97%

• Connector: BNC

• Cable Length: Standard: 3 ft (1 m) or Custom (Please inquire)

• Warranty: One year limited warranty

• Diameter: 12mm

• Length: 150mm

• Reference: Sealed

• Junction Number: Double (2)

• Junction Material: HDPE and Pellon

• Reference Solution: 3.5 M KCl/AgCl/KNO3 (gel)

• Glass Shape: Flat

• Body Material: Ultem

• Temperature Range: 0-80° C

• Strain Relief: No

• BNC Boot: Yes
