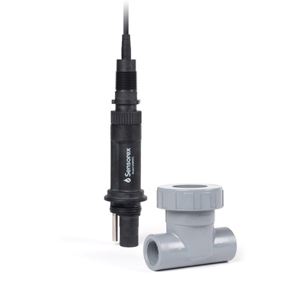

S8300 Modular Process pH Sensor (Inline, Submersion)

S8300 Modular Process pH Sensor (Inline, Submersion)

In heavily contaminated wastewater or chemical processing applications, an inline pH probe typically wears out fast. Constantly replacing an inline pH probe can feel like a waste of time and money. We created our modular, quick disconnect S8000 sensor packages for these types of heavy duty industrial applications. The sensor can be replaced in a few seconds with no tools or re-wiring required by swapping the S8000CD Quick Change Replacement Cartridge. Reuse the cable assembly and other mounting hardware for a low cost of ownership.

• Recommended for challenging water and wastewater applications

• Fast sensor changes with no tools required

• Reusable cable and mounting hardware

• Low total cost of ownership

• One year limited warranty

Optional Accessories:

• Differential amplifier module for applications with ground loop issues

• Unity gain amplifier module transmits sensor signal up to 1000ft

• 4-20mA transmitter module to connect to a PLC, SCADA or controller with 4-20mA input card

Specifications

• Measurement Range: 0-14 pH (low NA+ ion error)

• Temperature Range: 0-100° C

• Pressure Range: 0 – 100 PSIG

• Body Construction: Ryton Polyphenylene Sulfide (PPS)

• Mounting Orientation: Minimum 5° above horizontal plane

• Response Time: 95% in 1 second

• Isopotential: 7.00 pH

• Offset: 0.2%

• Span: > 97%

• Connector: BNC or Tinned Leads

• Cable Length: 10 feet (3 meters) or 20 feet (6 meters)

• Warranty: One year limited warranty
