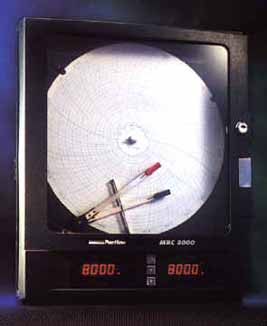

Partlow MRC 8000 Circular Chart Recorder
|
The Partlow MRC 8000 Circular Chart Recorder incorporates many refinements over the others in the MRC product line. One example is the inclusion of a 12” version of the enhanced platen assembly. This new feature eliminates slide wire feedback—which means improved reliability for you. Another important upgrade is the incorporation of optional isolated 4 to 20 mA outputs; this provides the highest resolution and accuracy available in a recorder of this type. There are two different versions in the Partlow MRC 8000 Circular Chart Recorders line: a basic recorder and a recording controller. Both may be specified as either single pen or dual pen units. A large .56” red LED display for each pen, as well as keypad access (even when the cover is closed) make its information easy-to-read and its parameters convenient to program. In addition, each version is capable of measuring, recording, and displaying temperature, pressure, level, flow, as well as other process variables. The Partlow MRC 8000 Circular Chart Recorders include isolated universal inputs as well as a host of optional capabilities such as: transmitter power supply, 5A relay outputs, auxiliary inputs for remote setpoints, RS-485 communications, door lock, and NEMA 4X enclosure. Standard features
Optional capabilities
Optional controller capabilities
Key Specifications
Agency Approvals
|
||||
Partlow MRC 8000
