Pump Set for Flammables, Hazardous Locations
From Lutz Pumps

For hazardous fluids such as acetone, conc. formic acid, ethyl acetate, butyl acetate, conc. acetic acid, nicotine, toluol, styrol, etc.

With Motor ME I 6 Ex :

• 640 W/0.85 HP, 120V / 60 Hz explosion proof

• Capacity: up to 18.5 GPM
  up to 70 l/min

• Delivery head: up to 33 ft.
  up to 10 m wc

• Viscosity: up to 500 cps
  up to 500 mPas


With MD-2 Air Motor:

• 400 W/0.54 HP explosion proof


• Capacity: up to 18.5 GPM
  up to 70 l/min


• Delivery head: up to 33 ft.
  up to 10 m wc

• Viscosity: up to 850 cps
  up to 850 mPas


Immersion Length:
39" (1000 mm)

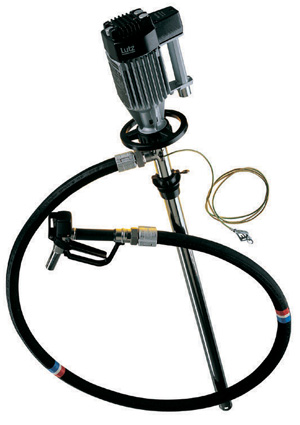

Pump set consisting of:
Motor ME I 6 Ex, Class I Group C&D, Class II Groups F&G (Explosion Proof) with 16 ft. (5 m) cord or MD-2 air motor, pump tube MSL-SS 41 stainless steel, 8´ (2.5 m) conductive chemical tubing 1" with conductive fittings, stainless steel nozzle with swivel, ground & bonding wires, PP barrel adapter, wall hanger.
