Microprocessor-Based Boiler Controller Model 2255
From Neptune Chemical Pump Company Inc

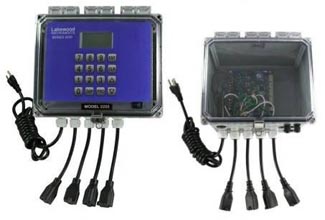

Lakewood Model 2255 Multi-Boiler Controller

Discontinued Model

• Steam flashing detector and compensation.

• Control and monitor 1 to 8 boilers.

• Future boilers can be added to an existing system.

• Boiler input(s) can be substituted to monitor condensate.

• Sample/cycle or continuous conductivity control of blowdown.

• Use sample/cycle for blowdown less than 1,000 lb./hr.

• Use continuous for blowdown greater than 1,000 lb./hr.

• Two water/flowmeter inputs provided.

• Can feed chemical according to water meter, percent of bleed, or percent on-time.

• Interactive communications software datalog and control (-RS2L & -RTC Options).

• Four different languages.

• Accurate control of boiler conductivity.

• Control results in fuel savings by preventing excessive blowdown.

• Prevents carryover due to excessive conductivity.

• One controller can monitor and datalog up to 8 Boilers.

Specifications

• Power 80-300 VAC

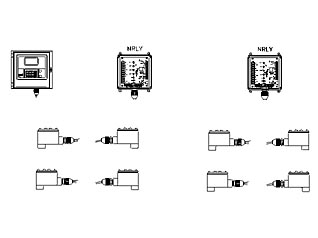

• Network Inputs One to Eight boilers, Two NRLY's and up to 8 NCON’s

• Water Meter Input Two contacting head or hall effect.

• 2255 Relays Four for alarms or chemfeed 3 Amps @ 120 VAC

• NRLY Four in each NRLY, 3 Amps @ 120 VAC

• Pressure 600 psi (41.4 bar)

• Max. Temperature 486ºF (252º C)

• Body Carbon Steel

• Electrode 416SS

• Insulator PEEK

• Connection 3/4 inch MNPT

• Conductivity Range 0-10,000m S

• Conductivity Accuracy 1% of full scale

• Conductivity Resolution 1% of reading

• Ambient Temperature 32-158º F (0-70º C)

• Temperature comp. Automatic or disable

• Power 24 VDC

• Ambient Temperature 32-158º F (0-70º C)

• Enclosure ABS Plastic

• Power 24 VD

• Deadband Adjustable

• Conductivity Setpoint Sample\cycle or continuous

• Sample Time Adjustable

• Cycle Time Adjustable

• Keypad Numeric

• Display Illuminated 128x64 pixel LCD

• Ambient Temperature 32-158º F (0-70º C)

• Enclosure ABS Plastic
