Kenco Calibration Pots

• Design utilizes a tank with shielded tubular gauge for maximum protection from glass breakage.

• The calibration pots have a maximum design pressure of 150 PSI.

• Provide a means for accurately checking the feed rates of a chemical metering pump.

• Manufactured in PVC, Carbon Steel and 316 Stainless Steel as standard materials. We can provide other materials to meet your chemical resistance requirements.

• Individually hand calibrated to assure maximum accuracy.

• Customization is always an option, give us your design criteria and we will design a gauge to fit your needs and specifications.

Specifications:

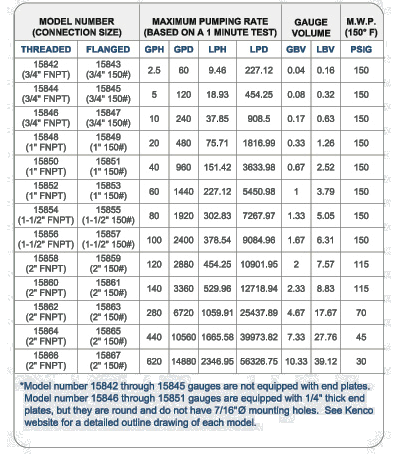

MODEL NUMBER/PROCESS CONNECTIONS:

*Larger Sizes Available. Consult Factory For Options

HOUSING MATERIAL:
CS = Carbon Steel
SS = Stainless Steel

*Other Housing Materials Available. Consult Factory For Options

SEALS:
V = Fluorocarbon
A = Aflas
B = Buna-N
TES = PTFE Encapsulated Silicone
EP = Ethylene Propylene

*Other Seal Materials Available. Consult Factory For Options.

SCALE OPTIONS:
GPH = Gallons Per Hour
LPH = Liters Per Hour
GPD = Gallons Per Day
LPD = Liters Per Day
GBV = Gallons By Volume
LBV = Liters By Volume

* NOTE: Scale type based on a one minute test.

*Other Scale Options Available. Consult Factory For Options.
