Ultrasonic Flow Meter Sonic-Pro
by Blue White Industries

Sonic-Pro Hybrid Ultrasonic Flowmeters

Features

  • User-selectable Doppler or Transit Time operating modes for measurement of both clean and dirty fluids

  • The meter can be factory configured for easy installation

  • Custom quality metric algorithms and DSP technology for reliable, high accuracy measurements

  • To allow for changes in the fluid's particle count, SonicPro monitors the signal gain and employs an
    Automatic Gain Control (AGC) algorithm that periodically adjusts the gain, maintaining the optimum power level

  • Smart external communication with simple, intuitive, Sonic-Pro software

  • Portable, rugged carrying case for easy transportation between applications

  • 2 year factory warranty

Features Diagram

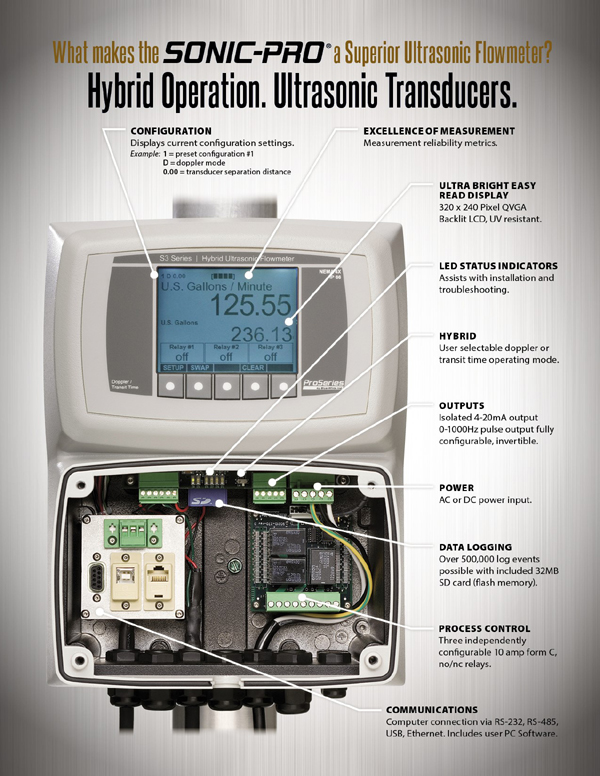

Sonic-Pro OVERVIEW

Specifications

Pipe Sizes

    T-Track fitting allows for small pipe diameter capabilities (1/2" - 24")
    Pipe size range 1/2" - 100"

Fluid

    Virtually any acoustically conductive fluid, Dirty or Clean
    Doppler Mode:

      Requires particles to be present in the flow stream to "reflect" the sound waves. (ie. Air bubbles, sand, etc.)
    Operational Environment:

      fluid contains .02%-15% (200-150,000 ppm) of particles.
    Transit Time Mode:

      Requires relatively "clean" fluid to enable the sound waves to complete a circuit.
    Operational Environment:

      0%-10% (0-100,000 ppm) of particles.

Accuracy

    +/- 1% of rate in Transit-Time mode greater than 1 ft/sec fluid velocity
    +/- 0.01 ft/sec in Transit-Time mode less than 1ft/sec fluid velocity
    +/- 2% of rate in Doppler mode greater than 5 ft/sec fluid velocity
    +/- 0.10 ft/sec in Doppler mode less than 5 ft/sec velocity

Interface & Data

Data logging:

    to standard SD Card supplied with unit. User configurable to time interval, flow rate and total set-point triggers. 500,000 events with included 32MB SD Card.

Optional Computer Connection:

    Ethernet, USB, RS-232, RS-485. Permits remote access and control of all functions including real-time display, system configuration, data logging, remote data capture as well as process control functions. Software permits remote internet access through local network setup.

Optional Process Control:

      Three independently configurable 10 amp, form C relays. Configure to flow rate for high/low/range rate alarm for to flow total for wither manual trigger batch operations of flow triggered batch operations.
      4-20 mA output: Fully configurable
      0 – 1000Hz Pulse Output : Fully configurable

Environment

    NEMA 4X (IP66), Powder Coated aluminum, SS clamps & hardware

Dimensions

    Meter size: 11"H x 8-1/2"W x 5"D (279H x 218W x 127D mm)
    Shipping dimensions: 21"H x 17"W x 9-1/2"H
    Weight: 24 lb. (10.9 Kg.) Includes carry case, Excludes T-Track fixture

Model Options:

Ultrasonic,Flow,Meter,Sonic-Pro,Flowmeter,Blue,White,Industries

S3 Hybrid Flow Meter

High quality 320 x 240 pixel QVGA backlit LCD display. Five button, fully configurable, tactile switch keypad interface. Security: master & configuration passwords.

Ultrasonic,Flow,Meter,Sonic-Pro,Flowmeter,Blue,White,Industries

S2 Hybrid Flow Meter

High quality 320 x 240 pixel QVGA backlit LCD display. Two button interface, allows user access to clear accumulated total & swap rate & total display fonts. Communication package required to access configuration menu.

Ultrasonic,Flow,Meter,Sonic-Pro,Flowmeter,Blue,White,Industries

S1 Hybrid Flow Meter

No local display. Factory configured for one application. Communication package required to access configuration menu and data log.

T-Track System

    For Small Pipe dimensions:

    1/2” to 24″

Dual T-Track



Single T-Track

Literature Downloads

Tech. Data Sheet (PDF) 85000-116
Instruction Manual (PDF) 80000-430
Quick Start Guide (PDF) 80000-478
T-Track Installation – V Mount (PDF) 80000-477
T-Track Installation – Z Mount (PDF) 80000-482

Engineering Spec Sheets:

Engineering Spec – S1 (PDF)
Engineering Spec – S2 (DOC)
Engineering Spec – S3 (DOC)

Firmware Updates:

Sonic-Pro Firmware Update Instructions (PDF) 80000-442
