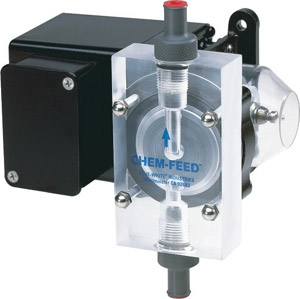

C-600HV CHEM-FEED Diaphragm Pump
by Blue White Industries

FlexFlo,A-1600,Peristaltic,Tube,Pump,Blue,White,IndustriesC-600HV CHEM-FEED Diaphragm Pump

Features

  • High Volume Diaphragm Pump

  • Acrylic pump head

  • 1/2" ID barbed tubing connections

Capabilities

  • Stroke adjustment from 4-100% permits accurate small injections at a high rate per minute.

  • 27:1 turndown

  • Outputs to 791 GPD.

  • Output pressures to 20 PSI.

Construction

enclosure:

  • Durable metal epoxy coated construction

Wetted Parts:

  • PTFE coated EP diaphragm

  • Double-ball inlet and outlet cartridge type ceramic check valves.

  • Chemical resistant PVDF pump head, valve body and fittings, ceramic balls, FKM static seals and TFE/P ball seat orings. No metal springs are used.

Motor

  • All ball bearing, permanently lubricated gear motor for smooth, quiet, powerful operation.

Shipping Accessories

  • Includes 1/2" ID clear PVC suction and discharge tubing, PVC Injection fitting and all mounting hardware.

  • PVC suction strainer with removable polypropylene filter screen.

Max. working pressure:

20 psig (1.4 bar)

Max. fluid temperature:

130ºF (54ºC)

Max. ambient temperature:

14 to 110ºF/ -10 to 43ºC

Maximum viscosity:

1,000 Centipoise

Maximum suction lift:

10 ft. Water, 0 psig

Output Adjustment Range:

4 - 100% stroke length

Duty cycle:

Continuous

Enclosure:

NEMA type 1 (IP20)

Operating Voltage:

115VAC/60Hz, 1ph (.74 Amp Maximum)
230VAC/60Hz, 1ph (0.36 Amp Maximum)
220VAC/50Hz, 1ph (.31 Amp Maximum)
24VAC/60Hz, 1ph (3.40 Amp Maximum)
12VDC (3.00 Amp Maximum)
24VDC (1.50 Amp Maximum)
Power Connection:

Junction box for field wiring

Approx. Shipping Weight:

8 lb. (3.6 Kg)


Downloads

Tech. Data Sheet (PDF) (PN 85000-056)
Instruction Manual (PDF) (PN 80000-017)
Exploded View (PDF)
