High Temperature Flow Meter F-462 Ultrapure
from Blue White Industries

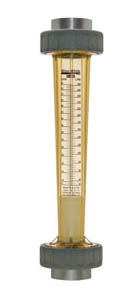

High Temperature Flow Meter F-462 Ultrapure from Blue White Industries

Pipe sizes 2″ female NPT fittings
2″ socket fusion
63mm Butt Fusion
Flow from 2 to 80 GPM / 8 to 300 LPM
No Metal – UltraPure Applications

Ideal for corrosive environments such as Deionized Water (DI Water) or other applications where an all plastic meter is desirable.

  • Designed for in-line installation (Vertical)

  • 2” and 63mm Pipe Size

  • F/NPT, Socket Fusion and Butt Fusion connections

  • Rib Guided Float

  • No Metal in the fluid path

  • Optional polycarbonate splash shield.

  • Not recommended for direct sunlight

  • OEM options available

Liquid (water)

  • 2-20 GPM / 6-76 LPM

  • 5-50 GPM / 20-200 LPM

  • 8-80 GPM / 30-300 LPM

Max. Working Pressure: 150 psig (10.3 bar) @ 70° F (21° C)
Max. Fluid Temperature: 200° F (93° C) @ 0 PSI
Full Scale Accuracy: +/- 2½ %
Meter Body Material: Polysulfone
Adapter Material: 2″ F/NPT: Polysulfone

2″ Socket Fusion: Polypropylene or PVDF

63mm Butt Fusion: Polypropylene or PVDF

Union Nuts: Glass fiber reinforced Nylon
Guide Rod Material: 316 SS or Hastelloy C-276
O-ring Material: FKM (Optional EP)
Max Pressure Drop: 2 PSI
Approx. Shipping Weight: 5 lb. (2.27 kg)

Tech. Data Sheet (US) (PDF) (PN 85000-021)
Tech. Data Sheet (METRIC) (PDF) (PN 85000-075)
Instruction Manual (PDF) (PN 80000-395)
