F-460 Ultrapure High Temperature Polysulfone
Molded Flow Meter

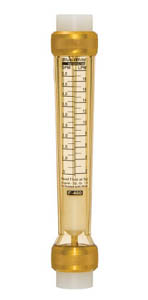

F-460 Ultrapure High Temperature Polysulfone Molded Flow Meter

Pipe sizes 1/2″ and 3/4″ female NPT fittings
1/2″ and 3/4″ socket fusion fittings
Flow from .1 to 5.0 GPM (.4 to 20.0 LPM)
No Metal – UltraPure Applications

  • For use in UltraPure applications

  • No metal in the fluid path

  • Rib guided float

  • Polysulfone meter body resists high temperatures and pressures

  • PTFE float and optional PVC, Polypropylene or PVDF adapters for corrosive applications

  • Direct reading permanent scale

Liquid (water)

  • 0.1-1.2 GPM / 0.4-4.4 LPM

  • 0.2-2.0 GPM / 0.8-8.0 LPM

  • 0.3-3.0 GPM / 1.0-11.0 LPM

  • 0.5-5.0 GPM / 2.0-20.0 LPM

Max. Working Pressure:

150 psig (10.3 bar) @ 70° F (21° C)

Max. Fluid Temperature:

PVDF adapters: 210˚F / 98˚C @ 0 PSI
PVC adapters: 130˚F / 54˚C @ 0 PSI

Full Scale Accuracy:

+/- 2 ½%

Meter Body Material:

Polysulfone

Adapter Material:

Female NPT (½” & ¾”): PVDF or PVC

Socket Fusion (½” & ¾”): PVDF or Polypropylene

Union Nuts:

Anodized Aluminum (optional PVC)

Float Material:

PTFE

O-ring Material:

FKM (Optional EP)

Max Pressure Drop:

2 PSI

Approx. Shipping Weight:

1 lb. (0.45 kg)


Tech. Data Sheet (US) (PDF) (PN 85000-019)
Tech. Data Sheet (METRIC) (PDF) (PN 85000-073)
Instruction Manual (PDF) (PN 80000-324)
