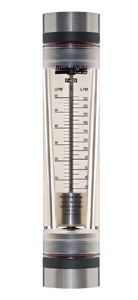

F-430N Acrylic Flowmeter

F-430N Acrylic Flowmeter

Pipe sizes 1 1/2" and 2" female NPT fittings

Flow from 4 to 100 GPM / 15 to 375 LPM

Acceptable in Direct Sunlight


Description

  • Durable, highly polished, one piece meter body.

  • Annealed for added strength and chemical resistance.

  • Acceptable for outdoor installations (acceptable in direct sunlight)

  • Direct reading permanent scale.

  • White back reflector for easy reading.

  • Standard 316 stainless floats and guide rods, optional Hastelloy-C for more corrosive environment

Specifications

  • Max. Working Pressure
    130 PSI (8.9 bar) @ 70°F (21°C)

  • Max. Fluid Temperature
    130°F (54°C) @ 0 psig

  • Full scale accuracy
    +/- 5%

  • O-ring seals
    FKM (Optional EP)

  • Float Material
    316 SS (optional Hatelloy-C)

  • Adapter Material Options
    PVC

  • Polypropylene

    CPVC

  • Approximate shipping weight
    6 lb. (2.7 kg)

  • NIST certificates optional

Tech. Data Sheet (PDF) (PN 85000-035)
Instruction Manual (PDF) (PN 80000-360)
