F-420N Acrylic Flowmeter

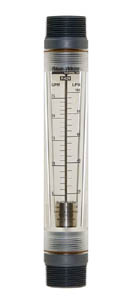

F-420 Acrylic Flowmeter

Pipe sizes 1" female NPT fittings 1 1/2" male NPT fittings
Flow from 5 to 25 GPM / 20 to 100 LPM
Acceptable in Direct Sunlight

Description

  • Durable, highly polished, one piece meter body.

  • Annealed for added strength and chemical resistance.

  • Acceptable for outdoor installations (acceptable in direct sunlight)

  • Direct reading permanent scale.

  • White back reflector for easy reading.

  • Standard 316 stainless floats and guide rods, optional Hastelloy-C for more corrosive environments.

Specifications

  • Max. Working Pressure
    130 PSI (8.9 bar) @ 70°F (21°C)

  • Max. Fluid Temperature
    130°F (54°C) @ 0 psig

  • Full scale accuracy
    +/- 5%

  • O-ring seals
    FKM (Optional EP)

  • Float Material
    316 SS (optional Hatelloy-C)

  • Adapter Material Options
    PVC

  • Polypropylene

  • Approximate shipping weight
    2 lb. (.91 kg)

  • NIST certificates optional


Tech. Data Sheet (PDF) (PN 85000-034)
Instruction Manual (PDF) (PN 80000-360)
