F-410N Acrylic Flowmeter

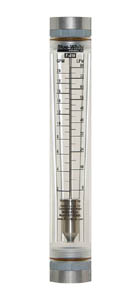

F-410 Acrylic Flowmeter

Pipe sizes 3/4" and 1" F/NPT
Flow from Liquid: 1 to 20 GPM (4 to 80 LPM) Air: 4 to 80 SCFM (8 to 140 M³/hr)
Acceptable in Direct Sunlight



Description
  • Durable, highly polished, one piece meter body.

  • Annealed for added strength and chemical resistance.

  • Acceptable for outdoor installations (acceptable in direct sunlight)

  • Direct reading permanent scale.

  • White back reflector for easy reading.

  • Standard 316 stainless floats and guide rods, optional Hastelloy-C for more corrosive environments.

  • High/Low Alarm models available

Specifications

    Max. Working Pressure: 150 PSI (10.3 bar) @ 70˚F (21˚C)
    Max. Fluid Temperature: 150°F (65°C) @ 0 psig (316 SS and Hastelloy-C Floats)

    120°F (49°C) @ 0 psig (PVC Floats)

    Full Scale Accuracy: +/- 5%
    Meter Body Material: Acrylic
    Float Material: 316 SS or PVC (optional Hastelloy-C)
    O-ring Seal Material: FKM (Optional EP)
    Adapter Material: Polypropylene
    Approx. Shipping Weight: 2 lb. (.91 kg)
    NIST Certificates Optional

Flow Ranges

Liquid (Water):

  • 1 – 10 GPM / 4 – 38 LPM
  • 1 – 17 GPM / 4 – 64 LPM
  • 2 – 20 GPM / 8 – 80 LPM

Gas (Air):

  • 4 – 45 SCFM / 8 – 80 M³HR
  • 5 – 75 SCFM / 10 – 125 M³HR
  • 10 – 80 SCFM / 20 – 140 M³HR

Pipe sizes:

  • 3/4″ female NPT
  • 1″ female NPT

High / Low Alarm Models

  • FA-410 Acrylic Tube Rotameter with Alarm

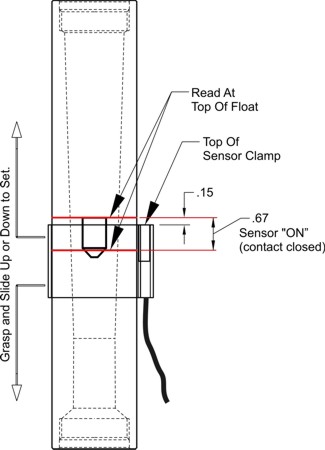

  • fa410_sensor

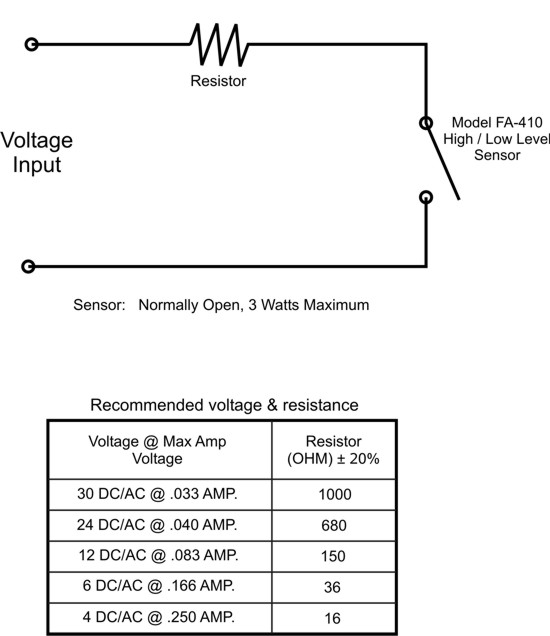

  • High surge currents may cause damage to the sensor contacts and significantly reduce its life. The following circuit is highly recommended.
  • fa410_wiring

    FA-410_700ht


Tech. Data Sheet (PDF) (PN 85000-033)
Instruction Manual (PDF) (PN 80000-362)
