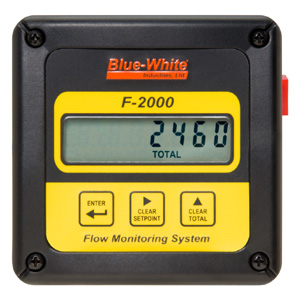

F-2000 Digital Paddlewheel Flowmeter
Water Ranges 0.4 to 8000 GPM (1 to 27000 LPM)
Pipe Sizes 3/8", up to 12"
Sensor, Pipe, Panel or Wall mount options available. Up to 200ft. range.
F-2000 Digital Paddlewheel Flowmeter Description
Easy to read 8 digit LCD, up to 4 decimal positions
Flow rate and Total flow display
AC/DC transformer or battery operated (RT models only). 4 AA batteries
Factory programmed with calibration certificate
Front panel security lockout
Total reset function can be disabled
Weather resistant ABS enclosure. NEMA 4X
Panel mounting option available (ships with 25ft of cable)
Custom calibration units available. Contact the factory.
Standard models ship with pipe fitting
Note: LCD is not recommended for direct sunlight applications.
F-2000 Digital Paddlewheel Flowmeter Model Variations
RT = Rate and TotalizerTransformer or battery operated
AO = 4-20mA, 0-10 VDC Analog Output, flow rate and totalizer.Transformer operated
PC = Batch processing, flow rate alarm, proportional chemical metering, flow rate and totalizer.Transformer operated
AP = Analog output, batch processing, flow rate alarm, proportional chemical metering, flow rate and totalizer.Transformer operated
Instruction Manual (Model RT) (PDF) (PN 80000-355)
Instruction Manual (Model PC, AP & AO) (PDF) (PN 80000-390)
Engineering Spec Sheet (DOC)
F-2000 Digital Paddlewheel Flowmeter Available Models
|
Molded Fittings
Water Ranges 0.4 to 200 GPM (1 to 760 LPM)
Pipe Sizes 3/8", 1/2", 3/4", 1", 1-1/2", and 2" male NPT
Panel, Pipe or Sensor Mount
Specifications:
Max. Working Pressure: 300 psig (20 bar) @ 70°F (21°C)
Max. Fluid Temperature: 200° F (93° C) @ 0 PSI
Full Scale Accuracy: +/- 1%
Pipe Fitting Body Material: PVDF or Polypropylene
Sensor/ Paddle/ Axel Material: PVDF
O-ring Material: FKM (Optional EP)
Max. Pressure Drop: 8 psi (varies per model)
Approx. Shipping Weight: 4 lb. (1.8 kg)
Tech. Data Sheet
(US) (PDF) (PN 85000-064)
Tech. Data Sheet
(METRIC) (PDF) (PN 85000-065)
|
|
Saddle Mount Fittings
Water Ranges 15 to 8000 GPM (70 to 27000 LPM)
Pipe Sizes 1", 1-1/2", 2", 2-1/2", 3", 4", 6", 8", 10", 12"
Panel, Pipe or Sensor Mount
Specifications:
Max. Working Pressure: 300 psig (20 bar) @ 70°F (21°C)
Max. Fluid Temperature:
200°F (93°C) @ 0 psig (PVDF sizes)
140°F (60°C) @ 0 psig (PVC sizes)
Full Scale Accuracy: +/- 1%
Saddle Material:
PVDF (1-1/2", 2", 3", 50mm, 63mm, 90mm sizes)
PVC (all other sizes)
Sensor/ Paddle/ Axel Material: PVDF
O-ring Material: FKM (Optional EP)
Max. Pressure Drop: 0 psi (no significant pressure drop)
Approx. Shipping Weight: 4 lb. (1.8 kg)
Tech. Data Sheet
(PDF) (PN 85000-068)
Installation Guide
(PDF) (PN 80000-374)
|
|
Solvent Weld PVC Tee Fittings
Water Ranges 6 to 600 GPM (25 to 2300 LPM)
Pipe Sizes 1", 1-1/2", 2" and 3"
Panel, Pipe or Sensor Mount
Specifications:
Max. Working Pressure: 200 psig (13.8 bar) @ 70°F (21°C)
Max. Fluid Temperature: 140°F (60°C) @ 0 psig
Full Scale Accuracy: +/- 1%
Pipe Fitting Body Material: PVC
Sensor/ Paddle/ Axel Material: PVDF
O-ring Material: FKM (Optional EP)
Max. Pressure Drop: 0 psi (no significant pressure drop)
Approx. Shipping Weight: 4 lb. (1.8 kg)
Tech. Data Sheet
(PDF) (PN 85000-027)
|
|
Stainless Steel Tee Fittings
Water Ranges 6 to 300 GPM (25 to 1000 LPM)
Pipe Sizes 1", 1-1/2", and 2"
Panel, Pipe or Sensor Mount
Specifications:
Max. Working Pressure: 300 psig (20 bar) @ 70°F (21°C)
Max. Fluid Temperature: 200° F (93° C) @ 0 PSI
Full Scale Accuracy: +/- 1%
Sensor/ Paddle/ Axel Material: PVDF
O-ring Material: FKM (Optional EP)
Max. Pressure Drop: 0 psi (no significant pressure drop)
Approx. Shipping Weight: 4 lb. (1.81 kg)
|
F-2000 Digital Paddlewheel Flowmeter Sensor
|
Sensor
Model Variations
Compatible with Blue-White® BW DIGI-METER® F-2000 Display, or other PLC units, SCADA, etc.
FH = Digital Hall Effect
FC = AC Sine Wave Output Signal
Specifications:
Max. Working Pressure: 300 psig (20 bar) @ 70°F (21°C)
Max. Fluid Temperature:
200°F (93°C) @ 0 psig (inline PolyPro and PVDF saddles)
140°F (60°C) @ 0 psig (PVC saddles and TEE fittings)
Full scale accuracy: +/- 1%
Power Requirements:
FH: 6-24 VDC, AC/DC transformer sold separately
FC: None
Sensor/Paddle/Axle material: PVDF
O-ring seals: FKM (Optional EP)
Approximate shipping weight: 2 lb. (0.9 kg)
Tech. Data Sheet
(PDF) (PN 85000-028)
Instruction Manual
(Model RT) (PDF) (PN 80000-355)
|
F-2000 Digital Paddlewheel Flowmeter Available Pipe Fittings
|
Blue-White® BW DIGI-METER® F-1000 and F-2000 Digital Paddlwheel Flowmeter model numbers include a pipe fitting as part of the complete model number. Although it is possible to purchase the pipe fittings separately, it is not necessary.
F-2000 units can be field recalibrated to accept any pipe fitting.
Specifications:
Molded In-Line
One Piece injection molded construction
Male pipe thread (M/NPT), in-line installation
Polypropylene fittings for standard installations
PVDF for highly corrosive applications
Pipe Sizes
3/8", 1/2", 3/4", 1", 1-1/2", and 2" male NPT
Max. Working Pressure
300 psig (20 bar) @ 70°F (21°C)
Max. Fluid Temperature
200°F (93°C) @ 0 psig
Saddle
Available in both IPS and Metric pipe sizes
IPS available in both Schedule 40 IPS and Schedule 80 IPS
1½ through 3 (50mm though 90mm): injection molded PVDF
4 through 12 (110mm though 315mm): machined from PVC sheet stock
Installs on existing pipe no other fittings required
no added pressure drop to system
ships with Neoprene gasket and 316 SS clamps
Pipe Sizes
IPS (ASTM-D-1785) 1½, 2?, 2½, 3?, 4?, 6?, 8?, 10?, 12?
METRIC (DIN 8062) 50, 63, 90, 110, 160, 200, 250, 315mm
Max. Working Pressure
300 psig (20 bar) @ 70°F (21°C)
Max. Fluid Temperature
200°F (93°C) @ 0 psig (PVDF)
140°F (60°C) @ 0 psig (PVC)
TEE: PVC and 316 SS
316 SS TEE: Female pipe threads
PVC TEE: Slip solvent weld
no added pressure drop to system
Pipe Sizes
316 Stainless Steel TEE: 1, 1½ and 2?
PVC Slip Weld TEE: 1, 1½, 2 and 3
Max. Working Pressure
316 Stainless Steel TEE: 300 psig (20 bar) @ 70°F (21°C)
PVC Slip Weld TEE: 200 psig (13.8 bar) @ 70°F (21°C)
Max. Fluid Temperature
316 Stainless Steel TEE: 200°F (93°C) @ 0 psig
PVC Slip Weld TEE: 140°F (60°C) @ 0 psig
Pipe Fitting Tech. Data Sheet
(PDF) (PN 85000-018)
|
|
