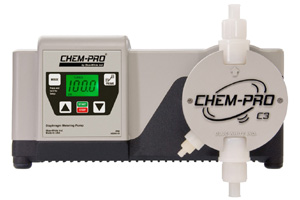

Chem-Pro C3 Diaphragm Metering Pump
by Blue White Industries

Benefits of a Diaphragm Pump:

• Capable of high pressures and high volume outputs.

• Non-loss motion variable speed DC motor is powerful, quiet and energy efficient

Capabilities:

• Feed rate resolution 0.1%

• Output rates to: 40 GPH (153 LPH) and pressures to: 150 PSI (10.3 bar).

Communication & Interface:

• SCADA ready 5-30V DC open collector output loop closes while motor is energized.

• Profibus DPV1, Profinet RT I/O, Industrial Ethernet/IP, Modbus RTU and Modbus TCP available

• Signal inputs include: 4-20mA, pulse inputs, and Remote start/stop

• Signal outputs include: Relay (3 amp), open collector, 4-20mA (optional)

• Upgradeable firmware

• Large, intuitive control-pad

• Backlit LCD displays motor speed, input signal values, service and alarm status.

• Includes Diaphragm Failure Detection (DFD) system.

• Compatible with Blue-White's Flow Verification Sensor (FVS) system

• Alarm relay monitors the DFD system and the FVS system.

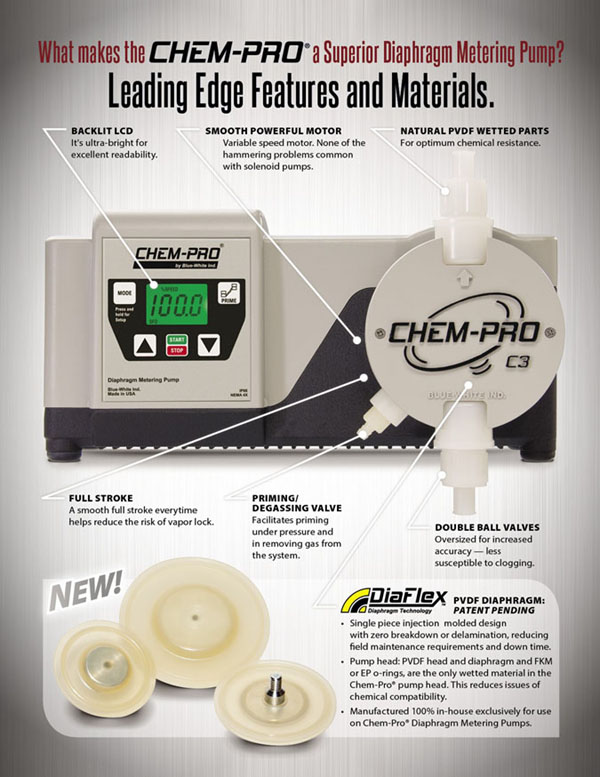

Superior Engineered Design:

• Protective LCD snap-on cover, (UV, in field wear and tear)

• Large single piece junction box with terminal block connectors inside

• Large PVDF, Ceramic, TFE/P double ball check valves without metal springs.

• Priming and degassing valve built into the pump head.

• Exclusive Diaflex® Single Layer PVDF diaphragm.

• NEMA 4X (IP66) wash-down, chemically resistant powder coated enclosure.

Patents Pending:

• Exclusive Diaflex® Single Layer PVDF diaphragm.
