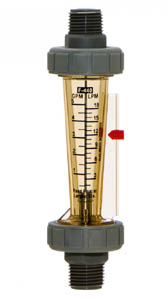

F-440 Polysulfone Molded Flowmeters

F-440 Polysulfone Molded Flowmeters

Pipe sizes 3/8" , 1/2" , 3/4" male NPT
Flow from .025 to 5 GPM (0.1 to 37.5 LPM)
Compact Size - Tight Installations

Description

  • Tough Polysulfone meter body resists high temperatures and pressures

  • Compact size for tight installation spaces

  • 2” scale length

  • In-line or panel mount configurations available (for vertical installation)

  • Optional integral flow adjustment valve

  • Standard Models: 316 SS guide rod

  • K-Series: Hastelloy C guide rod (for corrosive environments)

  • Optional: SolarMeter® Brass Adapters

Specifications

Max. Working Pressure:

175 psig (12.0 bar) @ 70° F (21° C)

Max. Fluid Temperature:

Models with Polysulfone adapters: 212° F (100° C) @ 0 PSI
SolarMeter® Models with Brass adapters: 240° F (115° C) @ 0 PSI

Full Scale Accuracy:

+/- 4%

Meter Body Material:

Polysulfone

Adapter Material:

Models for 3/8″, 1/2″, 3/4″ M/NPT: Polysulfone
Models for 3/8″ F/NPT and 1/2″, 3/4″ M/NPT or SWEAT: Brass

Guide Rod Material:

316 SS or Hastelloy C-276

O-ring Material:

FKM (Optional EP)

Approx. Shipping Weight:

1/2 lb. (0.23 kg)

Model Numbers

Standard Models for Liquid

In-Line Model Number Panel Mount Model Number Adjustable Model Number Pipe Size (M/NPT) GPM Range LPM Range Float Material
F-44250L-6 F-44250LE-6 F-44250LA-6 3/8” .025-.250 0.1–1.0 PVDF
F-44250L-8 F-44250LE-8 F-44250LA-8 1/2” .025-.250 0.1–1.0 PVDF
F-44375L-6 F-44375LE-6 F-44375LA-6 3/8” 0.1–1.0 0.4–4.0 316SS
F-44375L-8 F-44375LE-8 F-44375LA-8 1/2” 0.1–1.0 0.4–4.0 316SS
F-44376L-6 F-44376LE-6 F-44376LA-6 3/8” 0.2–2.0 0.8–8.0 316SS
F-44376L-8 F-44376LE-8 F-44376LA-8 1/2” 0.2–2.0 0.8–8.0 316SS
F-44500L-6 F-44500LE-6 F-44500LA-6 3/8” 0.5–5.0 1.8–18.0 316SS
F-44500L-8 F-44500LE-8 F-44500LA-8 1/2” 0.5–5.0 1.8–18.0 316SS
F-44750L-8 F-44750LE-8 F-44750LA-8 1/2” 1.0–10.0 5.0–37.5 316SS
F-44750L-12 F-44750LE-12 F-44750LA-12 3/4” 1.0–10.0 5.0–37.5 316SS
GPH Range LPH Range
F-44330L-6 F-44330LE-6 F-44330LA-6 3/8” 3.0–30.0 10–110 PTFE
F-44330L-8 F-44330LE-8 F-44330LA-8 1/2” 3.0–30.0 10–110 PTFE
F-44560L-6 F-44560LE-6 F-44560LA-6 3/8” 5.0–60.0 20–220 316SS
F-44560L-8 F-44560LE-8 F-44560LA-8 1/2” 5.0–60.0 20–220 316SS

K-Series – Specially Equipped Models for Liquid

In-Line Model Number Panel Mount Model Number Adjustable Model Number Pipe Size (M/NPT) GPM Range LPM Range Float Material
F-44250LK-6 F-44250LKE-6 F-44250LKA-6 3/8” .025-.250 0.1–1.0 PVDF
F-44250LK-8 F-44250LKE-8 F-44250LKA-8 1/2” .025-.250 0.1–1.0 PVDF
F-44375LK-6 F-44375LKE-6 F-44375LKA-6 3/8” 0.1–1.0 0.4–4.0 PTFE
F-44375LK-8 F-44375LKE-8 F-44375LKA-8 1/2” 0.1–1.0 0.4–4.0 PTFE
F-44376LK-6 F-44376LKE-6 F-44376LKA-6 3/8” 0.2–2.0 0.8–8.0 Hastelloy
F-44376LK-8 F-44376LKE-8 F-44376LKA-8 1/2” 0.2–2.0 0.8–8.0 Hastelloy
F-44500LK-6 F-44500LKE-6 F-44500LKA-6 3/8” 0.5–5.0 1.8–18.0 Hastelloy
F-44500LK-8 F-44500LKE-8 F-44500LKA-8 1/2” 0.5–5.0 1.8–18.0 Hastelloy
F-44750LK-8 F-44750LKE-8 F-44750LKA-8 1/2” 1.0–10.0 5.0–37.5 Hastelloy
F-44750LK-12 F-44750LKE-12 F-44750LKA-12 3/4” 1.0–10.0 5.0–37.5 Hastelloy
GPH Range LPH Range
F-44330LK-6 F-44330LKE-6 F-44330LKA-6 3/8” 3.0–30.0 10–110 PTFE
F-44330LK-8 F-44330LKE-8 F-44330LKA-8 1/2” 3.0–30.0 10–110 PTFE
F-44560LK-6 F-44560LKE-6 F-44560LKA-6 3/8” 5.0–60.0 20–220 PTFE
F-44560LK-8 F-44560LKE-8 F-44560LKA-8 1/2” 5.0–60.0 20–220 PTFE

Standard Models for Liquid – Brass Adapters

Female NPT Model Number Male NPT Model Number Sweat Model Number Pipe Size GPM Range LPM Range Float Material
F-44375LB-7 3/8” 0.1–1.0 0.4–1.0 316SS
F-44375LB-9 F-44375LB-8 1/2” 0.1–1.0 0.4–4.0 316SS
F-44365LB-7 1/2” 0.2–1.0 0.8–8.0 316SS
F-44376LB-9 F-44376LB-8 1/2” 0.2–2.0 0.8–8.0 316SS
F-44500LB-7 3/8” 0.5–2.0 1.8–18.0 316SS
F-44500LB-9 F-44500LB-8 1/2” 0.5–5.0 1.8–18.0 316SS
F-44750LB-13 F-44750LB-12 3/4” 1.0–10.0 5.0–37.5 316SS
GPH Range LPH Range
F-44330LB-7 3/8” 3.0–30.0 10–110 PTFE
F-44330LB-9 F-44330LB-8 1/2” 3.0–30.0 10–110 PTFE
F-44560LB-7 3/8” 5.0–60.0 20–220 316SS
F-44560LB-9 F-44560LB-8 1/2” 5.0–60.0 20–220 316SS

Tech. Data Sheet (PDF) (PN 85000-090)
Instruction Manual (PDF) (PN 80000-440)
F-440 Inline Exploded View (PDF)
F-440 Panel Mount Exploded View (PDF)
F-440 Panel Mount / Adjustable Exploded View (PDF)
