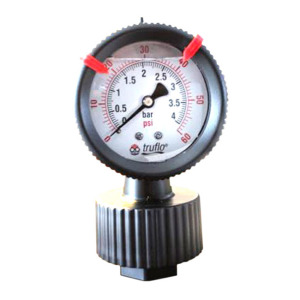

    Truflo® ‘Pump Grump’ Plastic Pressure Gauge & Isolator Dampener

    Truflo® ‘Pump Grump’ Plastic Pressure Gauge & Isolator Dampener

    Pulse and Surge Suppressor Perfect for Metering Pumps

    Features

    • All Plastic Plastic (Gauge + Isolator) Filled

    • Heavy Duty Design; Simple to Install

    • Completely Corrosion Resistant

    • Red Markers Designed to Indicate Optimum Operating Range

    • Extra Large Colored Display

    • Reduces Pressure Surges caused by Water Hammer or Metering Pump Pulsations

    • Highest Accuracy “In the” Industry 1.5%

    • Factory Prefilled-Glycerin or Silicone

    • No Filling Required

    • One-Piece Molded Design (No Assembly)

    • Suitable for Corrosive Media + Slurries

    Specifications

    Dial diameter Large 2-1/2" (Big Numbers-Clear Markers)
    Mounting Direct Mount, Bottom Connection FNPT 1/2"
    Housing One Piece Molded Design Polypro
    (No Assembly or Filling Required)
    Lens Options: Tough Impact glass
    Dial Red/Black Scale White Background, dial arc 270º
    Measuring Principle Bourdon Tube-SS316 (Non Wetted)
    Diaphragm (wetted part) - FPM (Standard)
    Movement SS316 (Non Wetted)
    Gauge Two (2) Red Adjustable Plastic Markers-Pressure Range Pointers fitted on the Bezel
    Connection Female thread 1/2" NPT
    Filling Options: Glycerin or Silicon Filled
    Accuracy +/-1.5% F.S.
    Operating temperature Max. Working Temp. +80ºC
    Pressure Range Standard range 0-30 / 0-60 / 0-160 PSI (Second Scale: Bar) Other units available, e.g., bar, MPa, etc.



    Pump Grump Data Sheet
