| Dial Diameter |
Large 2-1/2" (Big Numbers-Clear Markers) |
| Mounting |
Direct Mount, Bottom Connection FNPT 1/2" |
| Housing |
PVDF or Polypro - Viton or PTFE Diaphragm - One Piece Molded Design (No Assembly or Filling Required) |
| Lens |
Safety Glass |
| Dial |
Red & Black Scale White Background, dial arc 270º |
Measuring
Principle |
Bourdon Tube-SS316 (Non Wetted)
Diaphragm (wetted part) - FPM (Standard) |
| Movement |
SS316 (Non Wetted) |
| Gauge |

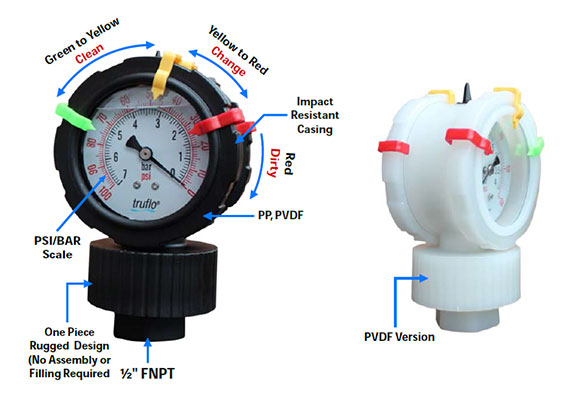

Red, Yellow, Green Moveable Plastic Markers-Pressure Range Pointers Fitted on the Bezel |
| Connection |
1/2" FNPT |
| Filling |
Options: Glycerin or Silicon Filled |
| Accuracy |
+/-1.5% F.S. |
| Operating temperature |
Max. Working Temp. PVDF-195 F, PP-170ºF |
| Pressure Range |
Standard range 0-60 / 0-100 / 0-160 PSI (Second Scale: Bar) Other units available, e.g., bar, MPa, etc. |
