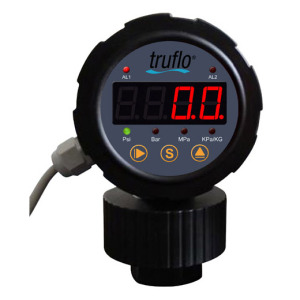

    Truflo® OBS Series LED Plastic Pressure Gauge

    Truflo® OBS Series LED Plastic Pressure Gauge

    All Plastic LED Digital Pressure Gauge & Isolator

    Highest Accuracy ±1% + 4-20mA + 2 Relay Outputs

    Features

    • All Plastic (Gauge + Isolator)

    • No Filling Required

    • Heavy Duty Design; Simple to Install

    • Completely Corrosion Resistant

    • Designed to Act as Visual Pressure Alert for Bag/Filter Change-Out

    • Extra Large LED Display

    • Reduces Small Pressure Surges caused by Water Hammer or Metering Pump Pulsations

    • Highest Accuracy in Industry 1%

    • One-Piece Molded Design (No Assembly)

    • Suitable for Corrosive Media + Slurries

    • No Programing Required

    • PTFE Diaphragm – Standard PP and PVDF

    • 15 FT of Cable Standard

    Specifications

    Dial Diameter Large 2-1/2" (Big Numbers)
    Mounting Direct Mount, Bottom Connection FNPT 1/2"
    Housing NEMA 4X PVDF or Polypro - PTFE Diaphragm - One Piece Molded Design (No Assembly)
    Lens Polycarbonate
    Dial Dial LED
    Connection 1/2" FNPT
    Accuracy +/-1.0 %
    Operating temperature Max. Working Temp. PVDF-195 F, PP-170ºF
    Pressure Range 0-290 PSI (Ambient Temp)
    Output 4-20mA + 2 (NPN or PNP) Relay Outputs
    Power Supply 10-30V DC



    OBS Series LED Data Sheet
    OBS Series LED Page 2 Data Sheet
    OBS Series LED Page 3 Data Sheet
