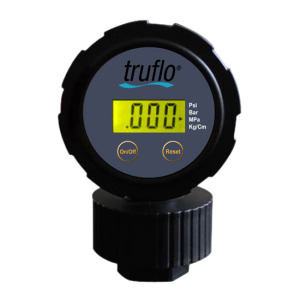

    Truflo® OBS Series LCD Plastic Pressure Gauge

    Truflo® OBS Series LCD Plastic Pressure Gauge

    All Plastic LCD Digital Pressure Gauge & Isolator

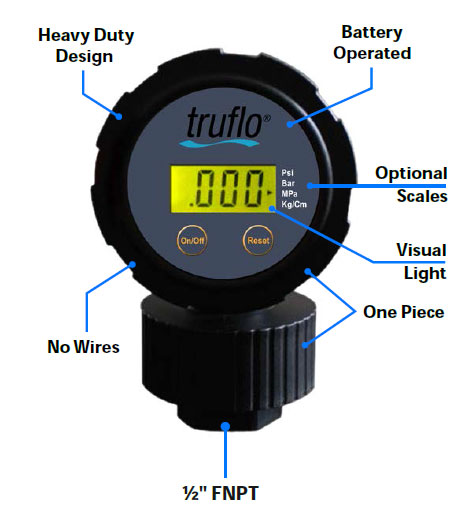

    Features

    • All Plastic (Gauge + Isolator)

    • No Filling Required

    • Heavy Duty Design; Simple to Install

    • Completely Corrosion Resistant

    • Designed to Act as Visual Pressure Alert for Bag/Filter Change-Out

    • Extra Large LCD Display

    • Reduces Small Pressure Surges caused by Water Hammer or Metering Pump Pulsations

    • Highest Accuracy in Industry ± 1%

    • One-Piece Molded Design (No Assembly)

    • Suitable for Corrosive Media + Slurries

    • No Programing Required

    • PTFE Diaphragm – Standard

    • Replaceable Lithium Battery

    • Long Life (3 Years)

    Specifications

    Dial Diameter Large 2-1/2" (Big Numbers)
    Mounting Direct Mount, Bottom Connection FNPT 1/2"
    Housing NEMA 4X PVDF or Polypro - PTFE Diaphragm - One Piece Molded Design (No Assembly)
    Lens Polycarbonate
    Dial Dial LCD
    Connection 1/2" FNPT
    Accuracy +/-1.0 %
    Operating temperature Max. Working Temp. PVDF-195 F, PP-170ºF
    Pressure Range 0-290 PSI (Ambient Temp)



    OBS Series LCD Data Sheet
