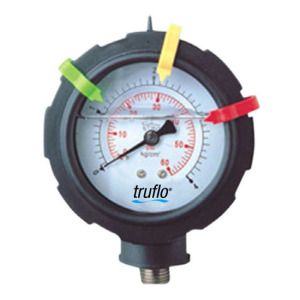

    Truflo® OBS-GO Series Plastic Pressure Gauge

    Truflo® OBS-GO Series Plastic Pressure Gauge

    Industry’s First Plastic Gauge – No Filling Required ‘Plug & Play’

    Features

    • 1/4" NPT Connection

    • Fit & Forget

    • Suitable for Corrosive Environments

    • All Plastic & Gauge (Filled)

    • Heavy Duty Design

    • Completely Corrosion Resistant

    • Extra Large Colored Display

    • Highest Accuracy in Industry 1.5%

    • Factory Pre-Filled Glycerin

    • No Filling Required

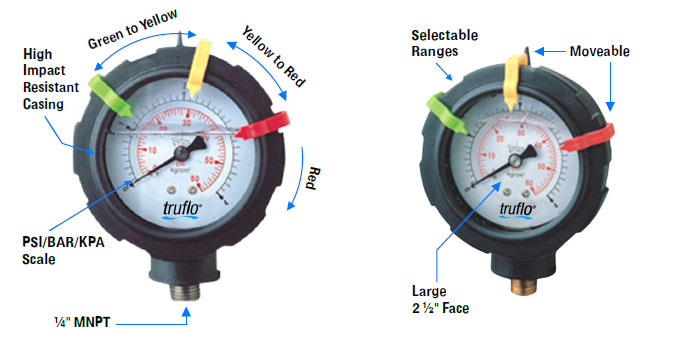

    • Visual Pressure Ranges

    • Simple to Install

    • Perfect Mate for Plastic Isolators

    Specifications

    SPECIFICATION DESCRIPTION
    Dial Diameter Large 2-1/2'” (Big Numbers-Clear Markers)
    Mounting Direct Mount, Bottom Connection MNPT 1/4"
    Housing PVDF or Polypro
    Lens High Impact Polycarbonate
    Dial Red & Black Scale White Background, dial arc 270º
    Measuring Principle Bourdon Tube-SS316-Brass
    Movement SS316-Brass (Non Wetted)
    Gauge Red, Yellow, Green Moveable Plastic Markers-Pressure
    Range Pointers Fitted on the Bezel
    Connection 1/4" MNPT
    Filling Options: Glycerin Standard Silicon Filled (Optional)
    Accuracy +/-1.5% F.S.
    Operating temperature Max. Working Temp. PVDF-195 F, PP-170ºF
    Pressure Range Standard range 0-60 / 0-100 / 0-160 PSI (Second Scale: Bar)
    Other units available, e.g., bar, MPa, etc.



    OBS-GO Series Data Sheet
