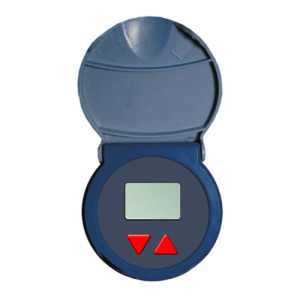

Truflo® Delta-P Series Plastic Differential Pressure Relay Switch + Gauge

Truflo® Delta-P Series Plastic Differential Pressure Relay Switch + Gauge

Truflo Delta-P Series offers industry’s first all-plastic corrosion resistant differential pressure gauge and relay switch. The Delta-P measures the differential pressure between the upstream port or (High) and downstream port (Low) of the filter/strainer element. The pressure difference in turn acts on a piston/magnet assembly within the Truflo device activating the Programmable Latching Relay Switch which can be used F alarm notification, pump or valve shut-off.

Features

All Plastic Design Glass Filled Ryton
Corrosion Resistant
NEMA 4X Rugged Enclosure
Liquid Crystal Display
Pressure Range 0-225 PSI
Easy to Program Relay Set-Point
PSI or Bar
Small Footprint -Compact-Only 2? Diameter
Easy to Install
Eprom Memory -Does Not Required Reprogramming if Power Lost
Low Power Detection Feature
Actual Pressure Difference Displayed on Screen
Manual Operation
Programmable Time Intervals between Change-Outs

Specifications

Dry Relay Contact	0.5AMP at 24VDC (N/O) Output
Body Diameter	2″ 50mm
Operating Temperature	-20-60�C (4-140�F)
Supply Power	24VDC
Accuracy	� 0.5%
Maximum Inlet�Pressure	225PSI (15 bar)
Enclosure	NEMA 4X Ryton PPS

Delta-P Series Data Sheet
