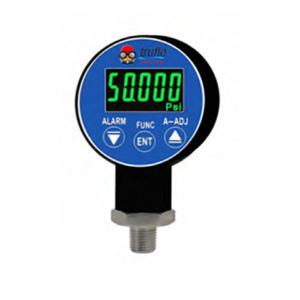

Truflo® THE bag nag Digital Pressure Alarm
 Features
-
Display Changes from Green to Red (Alarm Status) Time to Change Bags-Clean Filter
-
Highly Accurate 0.25% of Full Scale
-
Ceramic Diaphragm 316 SS ½” NPT Process Port
-
Display Pressure Units PSI, Bar, Kg/Cm2, KPA, MPA, In Hg
-
Two (2) 3 Amp Relay Alarm Functions
-
4-20mA Analog Output Function (Remote Display)
-
Digital RS-485 Interface Function (optional)
-
IP66 NEMA 4X
-

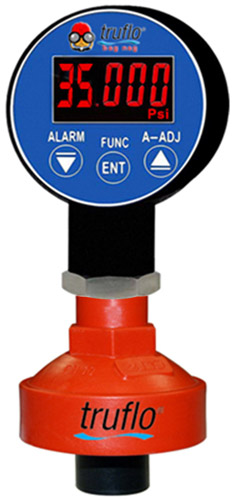

Plastic Gauge Isolator For Corrosive Services, Slurries, Heavy Sediment (optional)
Specifications
| Supply Voltage |
DC 14 to 30V |
| Measuring Accuracy |
0.25% Full Scale |
| Display Range |
-19999~99999 |
| Relay Contact Output |
DC 30V-3A |
| Analog Output |
4-20mA |
| Display |
Bright Red/Green LED high (0.4") |
| Parameter Setting |
Push Button |
| Memory Mode |
Non-Volatile E2 PROM Memory |
| Diaphragm Materials |
Ceramic A1203-96% |
| Pressure Port Materials |
316 SS |
| Display Materials |
Polymide 66+15%Glass Filled |
| Operating Temperature Range |
-4ºF to 176ºF (-20 to 80ºC) |
| Storage Temperature Range |
-22ºF to 176ºF (-35 to 80ºC) |
Truflo THE bag nag
|
