| Supply Voltage |
DC 14 to 28V |
| Measuring Accuracy |
±0.75% Full Scale |
| Repeatability |
±0.5% Full Scale |
| Input Sampling (Output Responses) Time |
6 Cycles/Sec. |
| Readout Range |
0~99999 (Flow Rate)
0~99999999 (Totalizer) |
| Relay Output |
Adjustable Set Points |
| Relay Contact Output |
DC 30V-3 Amp |
| Analog Output |
4-20mA |
| Output Drive |
<10mA
<10V |
| Protection Class |
IP66 NEMA 4X |
| RS-485 Baud Rate |
19200/9600/4800/2400 (selective) |
| RS-485 Protocol |
Modbus RTU Mode |
| Output Frequency |
60.5Hz m/s Nominal (18.45Hz ft/s nominal)
(Max. 10Hz (totalizer last digit)) |
| Pulse Output Type |
Transistor NPN Open-Collector
(Max. DC60V/100mA) |
| LED Display |
Bright Red or Green LED (0.4″ High) |
| Parameter Setting |
Push Button |
| Memory Mode |
Non-Volatile E2 PROM Memory |
| Sensor Body Material |
Natural PVDF |
| Rotor Material |
PFA Teflon |
| Shaft and Bearing Material |
Zirconium Cermaic (Zr02) |
| O-rings Material |
FKM (Viton) |
| Display Housing Materials |
Polymide 66 + PBT + 15% Glass Filled (UL94V-0) |
| Measuring Viscosity Range |
0.5 to 20 Centi Stokes (cst) |
| Maximum Particle Size |
<10%(Particle) or <0.5mm2 (Max Particle Size) |
| Maximum Operating Pressure/Temperature |
PVDF Body (200 psi @ -30 C (-22 F) to 30°C (86F), Pressure/Temperature 36 psi @ 90°C (194F) |
| Storage Temp |
(-30 -22F) to 80°C (176F) (20 to 90RH Non-Condensed) |
| Certification |
EN 55022:1998/A1:2000 Class A |

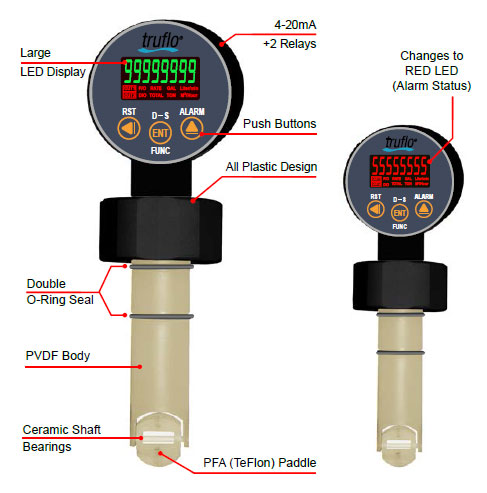

FLOW METER/TOTALIZER + VISUAL ALERT ALARM
