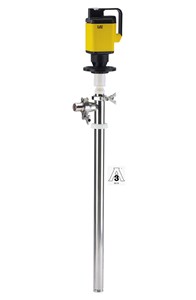

 The B70V-H-SR Sanitary is suitable for sheer-sensitive and viscous substances with or without fibrous or solid matters. The pump is operated with Lutz universal motors 110-120 V AC or MD-2 air motor.
Features:
-
For liquid foodstuffs, pharmaceutical agents and cosmetic products
-
Certified and approved according to the latest
"3-A Sanitary Standards for Centrifugal und Positive Rotary Pumps Number 02-10"
-
Selected materials according to FDA and 3-A Standard
-
NEW! EPDM stator acc. to 3-A standard 18-03 class II, in conformity with EC 1935/2004
-
Welded connections according to hygienic requirements of the EHEDG
-
Tri-Clamp connection according to DIN 32676
-
Suitable for all Lutz universal motors an air motors
-
Choice of motors, light and easy to carry
Drive shaft:
Torsion shaft (TS)
Immersion length:
43.3" (1100 mm)
Sealing system:
Mechanical seal (MS), open type spring loaded or optionally closed version.
Benefit:
-
Low pulsation an low shear effect
-
Thread free, manually detachable connections in the areas in contact with the medium
-
New EPDM stator without solvent based binders, no gap between sleeve and elastomer
-
Fast to dismantle, easy to clean
-
All construction elements are easily accessable for inspection and service
-
Hand wheel allows the motor to be quickly mounted and separated
Technical
| |
B70V-H-SR 50.1 |
|
Housing: |
Stainless steel (316 L) |
|
Seals: |
EPDM (FDA compliant) |
|
Mechanical seal: |
SiC/hard carbon/EPDM
(acc. to 3-A standard),
optional SiC/SiC/EPDM or closed version |
|
Packing gland: |
- |
|
Drive shaft: |
Stainless steel (316 Ti) |
|
Rotor: |
Stainless steel (316 Ti) |
|
Stator: |
PTFE, EPDM |
|
Nominal diameter: |
2.12 in
54 mm |
|
Temperature of the medium: |
up to 212°F
up to 100°C |
|
Discharge: |
Tri-Clamp 2" |
|
Length:** |
43.3"
1100 mm |
| |
|
| Operating data |
B70V-H-SR 12.1 |
| Delivery rate:* |
up to 13 GPM
up to 12 l/min |
| Delivery head:* |
up to 260 ft.
up to 8 bar |
