 Non-Metallic Air Operated Diaphragm Pump

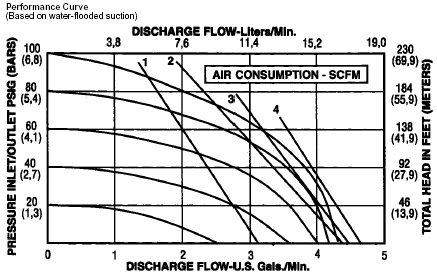

Capacity: Adjustable 0 to 4.3 GPM
Max/Min Air Pressure: All Models 100/20 PSI
Dry Lift Capacity at 100 PSI:
Models w/ Teflon Valves 15 ft.
Other Models 20 ft.
 Maximum Solids: 1/16"
Fluid Inlet/Discharge: 1/4" NPSF
Models (Wetted Materials) Max Temp
LPB - 1/4" (PP/BUNA N) 150 °F
LPT - 1/4" (PP/TEFLON) 150 °F
LNT - 1/4" (NYLON/TEFLON) 150 °F
LKT - 1/4" (PVDF/TEFLON) 200 °F
Applications:
For the laboratory sector, small plants, requirements with small delivery volume at relatively high pressure.
Features:
-
Absolutely lube-free and non stalling operation
-
Can safely run dry
-
Self-priming dry or wet
-
Centre block made of corrosion-free plastic
-
Few, easily accessible construction parts
-
Flow rate up to 16 l/min
-
Explosion-proof version in compliance with ATEX
-
Directive 94/9/EC, category 2
Benefit:
-
No risk of pump failure due to to poor lubrication
-
No contaminating of the environment or of the product itself by oil vapour
-
Gentle pumping of liquids and pastes
-
Flow rate and pressure can be regulated continuously
-
No dynamic seals
-
Possible air leakage arising at connections or in case of diaphragm rupture does not harm the air system
-
Easy maintenance without special tools
|
